Ordering Guide GARANT Torque screwdriver DIN EN ISO 6789 fixed setting 211750:
set torque N·m |
21 1750 | Torque measuring accuracy % |
Overall length L mm |
Blade length mm |
0,2 | 16.69 | ±15 | 107 | 50 |
0,38 | 16.69 | ±15 | 107 | 50 |
0,45 | 16.69 | ±15 | 107 | 50 |
0,6 | 16.69 | ±15 | 107 | 50 |
0,9 | 16.69 | ±15 | 107 | 50 |
1,0 | 16.69 | ±15 | 107 | 50 |
1,2 | 16.69 | ±15 | 107 | 50 |
1,3 | 16.69 | ±15 | 107 | 50 |
1,5 | 16.69 | ±15 | 107 | 50 |
1,8 | 16.69 | ±15 | 107 | 50 |
2,2 | 16.69 | ±10 | 107 | 50 |
2,8 | 16.69 | ±10 | 107 | 50 |
3,0 | 16.69 | ±10 | 107 | 50 |
3,5 | 16.69 | ±10 | 107 | 50 |
3,8 | 16.69 | ±10 | 107 | 50 |
4,2 | 16.69 | ±10 | 107 | 50 |
5,0 | 16.69 | ±10 | 107 | 50 |
5,7 | 16.69 | ±10 | 107 | 50 |
Alternative Guide GARANT Torque screwdriver DIN EN ISO 6789 fixed setting 211750:

65 9965 | “TQ-Station” torque screwdriver set |
224.95 | |
Supplied with: Torque screwdriver No. 211750 |
1× each size 0.6; 0.9; 1.2; 1.5; 2.2; 3.0; 3.8; 5.0; 5.7 | ||
Bit for Torx® No. 674248 | 1 each size TX6; TX7; TX8; TX9; TX10; TX15; TX20 | ||
Bit for Torx Plus® No. 674252 | 1 each size 6IP; 7IP; 8IP; 9IP; 10IP; 15IP; 20IP | ||
Storage station | 1 pc. | ||
Container boxes (drawers) | 3 pcs. |

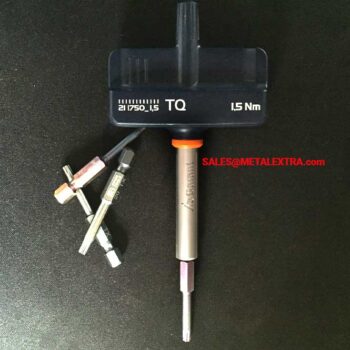

Torque screwdriver with easy-grip 2-component T-handle and fixed torque. 1/4 inch bit holder with magnet. Flexible modular bit-holder station with a sturdy sheet metal body and light-weight plastic storage units. Quick access to the torque screwdrivers and also to the E 6.3 precision bits. Handy storage of items such as indexable inserts in 3 retractable container boxes. Non-tipping solution for the workbench or machine, or for hanging from a perforated panel.
Function:
Standard:
Accuracy:
Size 2.2 – 5.7 = ± 10 % of the stated value.
Supplied with:
Bits for Torx®: 1 pc. each No. 674248 size TX6; TX7; TX8; TX9; TX10; TX15; TX20
Bits for Torx Plus®: 1 pc. each No. 674252 size 6IP; 7IP; 8IP; 9IP; 10IP; 15IP; 20IP
Storage station: 1 pc.
Container boxes (drawers): 3pcs.
Note:
The individual sizes of the torque screwdrivers are available under No. 211750.
