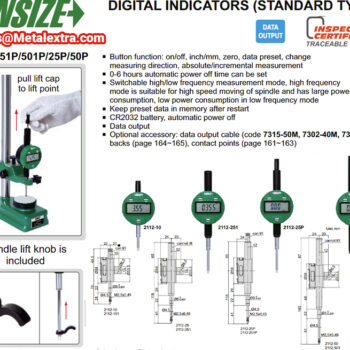

Dimensi INSIZE Digital Test Indicator 2112, Standard type (Resolution 0.001mm) 12.7mm – 50.8mm :
Order Guide INSIZE Digital Test Indicator 2112, Standard type (Resolution 0.001mm) 12.7mm – 50.8mm :
Order Code |
Range |
Accuracy |
Hysteresis |
Maximum
Measuring force |
Remark |
2112-101F |
12.7 mm/0.5″ |
5 μm |
2 μm |
1.5N |
flat back |
2112-251F |
25.4 mm/1″ |
5 μm |
3 μm |
2.2N |
flat back |
2112-501F |
50.8 mm/2″ |
6 μm |
3 μm |
2.5N |
flat back |
2112-101 |
12.7 mm/0.5″ |
5 μm |
2 μm |
1.5N |
lug back |
2112-251 |
25.4 mm/1″ |
5 μm |
3 μm |
2.2N |
lug back |
2112-501 |
50.8 mm/2″ |
6 μm |
3 μm |
2.5N |
lug back |
2112-251P |
25.4 mm/1″ |
5 μm |
3 μm |
2.2N |
flat back, with lift cap |
2112-501P |
50.8 mm/2″ |
6 μm |
3 μm |
2.5N |
flat back, with lift cap |
Order Guide INSIZE Digital Test Indicator 2112, Standard type (Resolution 0.01mm) 12.7mm – 50.8mm :
Order Code |
Range |
Accuracy |
Hysteresis |
Maximum
Measuring force |
Remark |
2112-10F |
12.7 mm/0.5″ |
20 μm |
10 μm |
1.5N |
flat back |
2112-25F |
25.4 mm/1″ |
20 μm |
10 μm |
2.2N |
flat back |
2112-50F |
50.8 mm/2″ |
30 μm |
10 μm |
2.5N |
flat back |
2112-10 |
12.7 mm/0.5″ |
20 μm |
10 μm |
1.5N |
lug back |
2112-25 |
25.4 mm/1″ |
20 μm |
10 μm |
2.2N |
lug back |
2112-50 |
50.8 mm/2″ |
30 μm |
10 μm |
2.5N |
lug back |
2112-25P |
25.4 mm/1″ |
20 μm |
10 μm |
2.2N |
flat back, with lift cap |
2112-50P |
50.8 mm/2″ |
30 μm |
10 μm |
2.5N |
flat back, with lift cap |
1) ± 1 digit
2) Values ± 20%, indicator in vertical position, outgoing measuring spindle
3) S = Standard P = Protected
4) see cables chapter
