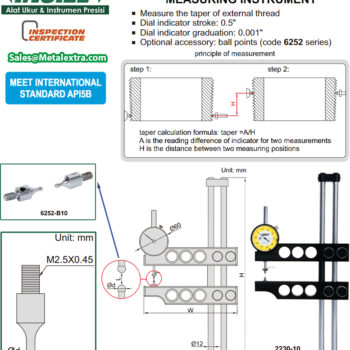

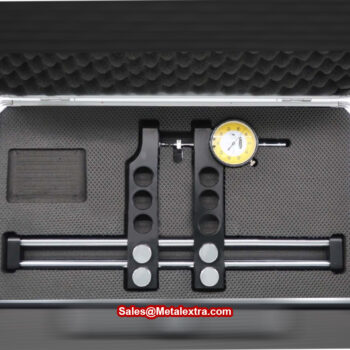

Specification Guide INSIZE External Thread Taper Diameter Gauge 2230 (API5B Standard, Dial Indicator res; 0.001 Inch) Accuracy; 0.0015 INCH, Range; ≤254mm, 203.2mm-406.4mm / ≤10 Inch, 8-20 Inch:
Order Guide INSIZE External Thread Taper Diameter Gauge 2230 (API5B Standard, Dial Indicator res; 0.001 Inch) Accuracy; 0.0015 INCH, Range; ≤254mm, 203.2mm-406.4mm / ≤10 Inch, 8-20 Inch:
Order Code |
Range (L) |
Accuracy |
H |
W |
2230-10 |
0-10″/0-254mm |
0.0015″ |
400mm |
200mm |
2230-45 |
1-4 1/2″/25.4-114.3mm |
0.0015″ |
278mm |
178mm |
2230-16 |
8-16″/203.2-406.4mm |
0.0015″ |
600mm |
260mm |
2230-20 |
8-20″/203.2-508mm |
0.0015″ |
680mm |
260mm |
Order Guide of Ball-point anvils with TPI for INSIZE External Thread Taper Diameter Gauge 2230 (API5B Standard, Dial Indicator res; 0.001 Inch) Accuracy; 0.0015 INCH, Range; ≤254mm, 203.2mm-406.4mm / ≤10 Inch, 8-20 Inch:
Order Code |
Thread type |
Threads Per inch |
Ball diameter (Ød) |
Taper |
Pitch |
6252-B8 |
round thread, line pipe |
8 |
1.829mm |
1.829mm |
6252-B10 |
round thread, line pipe |
10 |
1.448mm |
1.448mm |
6252-B115 |
line pipe |
11.5 |
1.27mm |
1.27mm |
6252-B14 |
line pipe |
14 |
1.041mm |
1.041mm |
6252-B18 |
line pipe |
18 |
0.813mm |
0.813mm |
6252-B27 |
line pipe |
27 |
0.533mm |
0.533mm |
6252-B5 |
buttress thread |
5 |
2.286mm |
— |
6252-B51 |
buttress thread |
5 |
— |
1.575mm |
6252-B52 |
extreme line thread |
5, 6 |
1.524mm |
— |
6252-B53 |
extreme line thread |
5 |
— |
2.667mm* |
6252-B6 |
extreme line thread |
6 |
— |
2.210mm* |
