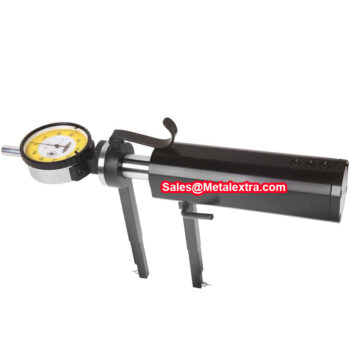

Specification Guide INSIZE Internal Thread Taper Gauge 2231 (API5B, Dial Indicator res; 0.001 Inch) Accuracy; 0.0015 Inch, Range; 1-16″/25.4-406.4mm:
Order Guide INSIZE Internal Thread Taper Gauge 2231 (API5B, Dial Indicator res; 0.001 Inch) Accuracy; 0.0015 Inch, Range; 1-16″/25.4-406.4mm:
Order code |
Measuring range (L) |
Accuracy |
Type |
2231-6 |
1-6”/25.4-152.4mm |
0.0015” |
A |
2231-16 |
5 1/2”-16”/139.7-406.4mm |
0.0015” |
B |

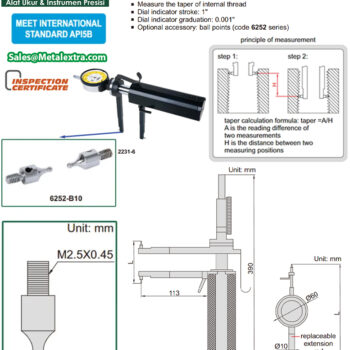

Order Guide of Ball-point anvils with TPI for INSIZE Internal Thread Taper Gauge 2231 (API5B, Dial Indicator res; 0.001 Inch) Accuracy; 0.0015 Inch, Range; 1-16″/25.4-406.4mm :
Order Code |
Thread type |
Threads Per inch |
Ball diameter (Ød) |
Taper |
Pitch |
6252-B8 |
round thread, line pipe |
8 |
1.829mm |
1.829mm |
6252-B10 |
round thread, line pipe |
10 |
1.448mm |
1.448mm |
6252-B115 |
line pipe |
11.5 |
1.27mm |
1.27mm |
6252-B14 |
line pipe |
14 |
1.041mm |
1.041mm |
6252-B18 |
line pipe |
18 |
0.813mm |
0.813mm |
6252-B27 |
line pipe |
27 |
0.533mm |
0.533mm |
6252-B5 |
buttress thread |
5 |
2.286mm |
— |
6252-B51 |
buttress thread |
5 |
— |
1.575mm |
6252-B52 |
extreme line thread |
5, 6 |
1.524mm |
— |
6252-B53 |
extreme line thread |
5 |
— |
2.667mm* |
6252-B6 |
extreme line thread |
6 |
— |
2.210mm* |
