Specification Guide for INSIZE Multi Gas Detector 0612-MG04 (Rechargable, Data out) Water Resist IP66, Combustible Gas range: EX, including CH4, C3H8, H2 + H2S, optional; O2, CO, NO, NH3, PH3:
Customizable Guide for INSIZE Multi Gas Detector 0612-MG04 (Rechargable, Data out) Water Resist IP66, Combustible Gas range: EX, including CH4, C3H8, H2 + H2S, optional; O2, CO, NO, NH3, PH3:
Gas type |
Range |
Resolution |
L-alarm |
H-alarm |
CO |
0-1000ppm |
1ppm |
50ppm |
150ppm |
O2 |
0-30%vol |
0.1%vol |
19.5%vol |
23.5%vol |
H2 |
0-1000ppm |
1ppm |
50ppm |
150ppm |
H2S |
0-100ppm |
0.1ppm |
10ppm |
20ppm |
CH4 |
0-100%LEL |
1%lel |
20%LEL |
50%LEL |
C2H4O |
0-100ppm |
1/0.1ppm |
20ppm |
50ppm |
EX |
0-100%LEL |
1%lel/1%vol |
20%LEL |
50%LEL |
C3H8 |
0-100%LEL |
1%lel/1%vol |
20%LEL |
50%LEL |
C2H5OH |
0-100%LEL |
1%lel/1%vol |
20%LEL |
50%LEL |
NH3 |
0-100ppm |
0.1/1ppm |
20ppm |
50ppm |
CL2 |
0-20ppm |
0.1ppm |
5ppm |
10ppm |
O3 |
0-10ppm |
0.1ppm |
2ppm |
5ppm |
SO2 |
0-20ppm |
0.1/1ppm |
5ppm |
10ppm |
PH3 |
0-20ppm |
0.1ppm |
5ppm |
10ppm |
CO2 |
0-5000ppm |
1ppm/0.1%vol |
1000ppm |
2000ppm |
NO |
0-250ppm |
1ppm |
50ppm |
150ppm |
NO2 |
0-20ppm |
0.1ppm |
5ppm |
10ppm |
HCN |
0-50ppm |
0.1/0.01ppm |
10ppm |
20ppm |
HCL |
0-20ppm |
0.001/0.1ppm |
5ppm |
10ppm |
CH2O |
0-20ppm |
1/0.1ppm |
5ppm |
10ppm |
HF |
0-100ppm |
0.01/0.1ppm |
2ppm |
5ppm |
C7H8/C8H10 |
0-20ppm |
0.01/0.1ppm |
5ppm |
10ppm |
Ordering Guide for INSIZE Multi Gas Detector 0612-MG04 (Rechargable, Data out) Water Resist IP66, Combustible Gas range: EX, including CH4, C3H8, H2 + H2S, optional; O2, CO, NO, NH3, PH3:
ORDER CODE |
0612-MG04 |
Gas |
combustible gas/EX (optional: O2, CO, H2S) |
Range |
0-100%LEL (optional: O2: 0-30%vol, CO: 0-1000ppm, H2S: 0-100ppm) |
Resolution |
1%LEL (optional: O2: 0.1%vol, CO: 1ppm, H2S: 1ppm) |
Accuray |
±5%FS |
Response time |
T90<60s |
Operation environment |
temperature: -10°C~55°C; humidity: <95%RH, no condensation |
Sensor lifetime |
2 years (depending on working environment) |
Power supply |
3.7V rechargeable Li-ion battery, working time>8h |
Dimension (LxWxH) |
124×60×46mm |
Weight |
205g |

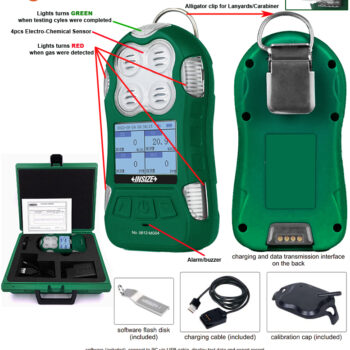

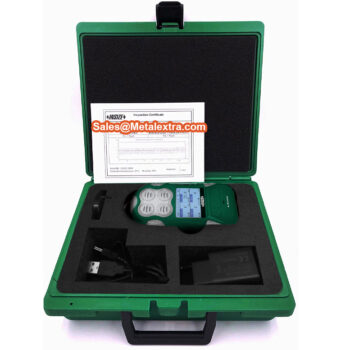

STANDARD DELIVERY |

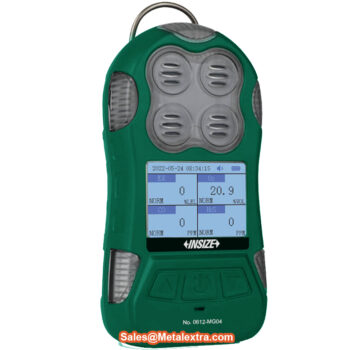

Main unit |
1 pc |
Calibration cap |
1 pc |
AC/DC adapter and charging cable |
1 pc |
