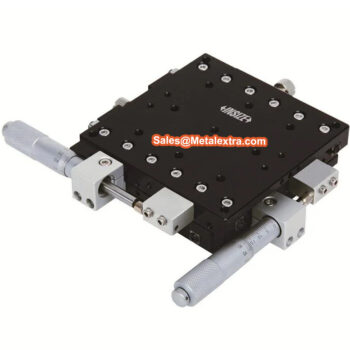

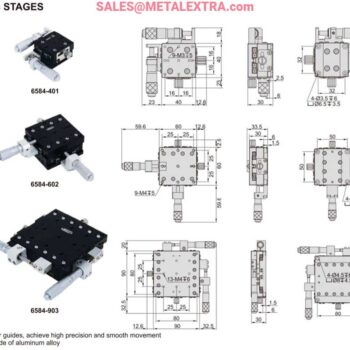

Specification Guide for INSIZE Stage XY-Axis 6584-401 (Screw micrometer grad; 0.01mm) Displacement; ±6.5mm – 12mm, Size; Ø40mm – Ø125mm:
Ordering Guide for INSIZE Stage XY-Axis 6584-401 (Screw micrometer grad; 0.01mm) Displacement; ±6.5mm – 12mm, Size; Ø40mm – Ø125mm:
SPECIFICATION (micrometer on the left) |
Order Code |
XY-axis
displacement |
Parallelism of top
to bottom surface |
Micrometer graduation |
Micrometer accuracy |
Maximum
load |
Micrometer location |
Stage size |
Weight |
6584-401 |
± 6.5mm |
0.04mm |
0.01mm |
0.01mm |
29.4N (3kgf) |
left |
40x40mm |
0.27kg |
6584-601 |
± 6.5mm |
0.0 6mm |
0.01mm |
0.01mm |
49N (5kgf) |
left |
0x60mm |
0.48kg |
6584-901 |
±12.5mm |
0.0 6mm |
0.01mm |
0.02mm |
93.1N (9.5kgf) |
left |
90x90mm |
1kg |
6584-1251 |
±12.5mm |
0.08mm |
0.01mm |
0.02mm |
180N (18.4kgf) |
left |
125x125mm |
2.8kg |
SPECIFICATION (micrometer n the middle) |
Order Code |
XY-axis
displacement |
Parallelism of top
to bottom surface |
Micrometer graduation |
Micrometer accuracy |
Maximum
load |
Micrometer location |
Stage size |
Weight |
6584-402 |
± 6.5mm |
0.04mm |
0.01mm |
0.01mm |
29.4N (3kgf) |
middle |
40x40mm |
0.27kg |
6584-602 |
± 6.5mm |
0.0 6mm |
0.01mm |
0.01mm |
49N (5kgf) |
middle |
0x60mm |
0.48kg |
6584-902 |
±12.5mm |
0.0 6mm |
0.01mm |
0.02mm |
93.1N (9.5kgf) |
middle |
90x90mm |
1kg |
6584-1252 |
±12.5mm |
0.08mm |
0.01mm |
0.02mm |
180N (18.4kgf) |
middle |
125x125mm |
2.8kg |
SPECIFICATION (micrometer on the right) |
Order Code |
XY-axis
displacement |
Parallelism of top
to bottom surface |
Micrometer graduation |
Micrometer accuracy |
Maximum
load |
Micrometer location |
Stage size |
Weight |
6584-403 |
± 6.5mm |
0.04mm |
0.01mm |
0.01mm |
29.4N (3kgf) |
right |
40x40mm |
0.27kg |
6584-603 |
± 6.5mm |
0.0 6mm |
0.01mm |
0.01mm |
49N (5kgf) |
right |
0x60mm |
0.48kg |
6584-903 |
±12.5mm |
0.0 6mm |
0.01mm |
0.02mm |
93.1N (9.5kgf) |
right |
90x90mm |
1kg |
6584-1253 |
±12.5mm |
0.08mm |
0.01mm |
0.02mm |
180N (18.4kgf) |
right |
125x125mm |
2.8kg |
