Technical Guide IINSIZE 2D Vision Measurement 2D System (33-195x, Manual, 300×200×200mm) ISD-V300A:
Orientation |
Vertical |
Magnification |
33x – 195x |
Screen Diameter (Inch) |
19 |
Screen Diameter (Decimal Inch) |
19.0000 |
X-Axis Stage Travel Range (mm) |
300.00 |
X-Axis Stage Travel Range (Inch) |
12.0000 |
X-Axis Stage Travel Range (Decimal Inch) |
12.0000 |
Y-Axis Stage Travel Range (mm) |
200.00 |
Y-Axis Stage Travel Range (Decimal Inch) |
8.0000 |
Resolution (mm) |
0.0005 |
Resolution (Decimal Inch) |
0.000020 |
Working Distance (mm) |
92 |
Stage Length (mm) |
500.00 |
Stage Length (Inch) |
19.6900 |
Stage Length (Decimal Inch) |
19.6900 |
Stage Width (mm) |
330.00 |
Stage Width (Decimal Inch) |
12.9900 |
Overall Length (mm) |
760.00 |
Overall Length (Decimal Inch) |
29.92000 |
Overall Width (Decimal Inch) |
23.6200 |
Light Source |
LED |
Overall Height (Inch) |
35.4300 |
Overall Height (Decimal Inch) |
35.4300 |
Ordering Guide INSIZE 2D Vision Measurement 2D System (33-195x, Manual, 300×200×200mm) ISD-V300A:
Order Code |
ISD-V150A |
ISD-V250A |
ISD-V300A |
ISD-V400A |
Measuring range (XxYxZ) |
150x100x200mm |
250x150x200mm |
300x200x200mm |
400x300x200mm |
Stage size |
354x228mm |
450x280mm |
500x330mm |
60 6×4 66mm |
Stage glass size |
210×1 60mm |
30 6x196mm |
350x250mm |
450x350mm |
Resolution of X/Y/Z axis |
0.5μm |
Accuracy of X/Y axis |
5(3.5+L/100)μm (L is the measuring length in mm) |
Repeatability of X/Y axis |
2μm |
Objective |
0.7X-4.5X (zoom) |
Working distance |
92mm |
Magnification |
33X-195X (on 1922 monitor) |
Camera |
1/322 color CCD, 0.3M pixel |
Illumination |
surface and contour with adjustable LED |
Max. height of workpiece |
160mm |
Max. weight of workpiece |
20kg |
Operation system |
Windows 7/8/10 |
Drive method |
manual |
Power supply |
110/220V, 50/60Hz |
Dimension (LxWxH) |
560x540x850mm |
760x 600x900mm |
760x 600x900mm |
970x 670x940mm |
Weight |
100kg |
120kg |
140kg |
240kg |
STANDARD DELIVERY |
Main unit |
1 pc |
Computer |
1 pc |
Calibration glass chart |
1 pc |
Clay |
1 pc |
Foot switch |
1 pc |
Anti-dust cover |
1 pc |
OPTIONAL ACCESSORY |
0.5X auxiliary objective |
Code: ISD-V-OB05X
Working distance: 175mm
Magnification: 1 6.5-97.5X (on 19 – 22 Inch monitor) |
2 X auxiliary objective |
Code: ISD-V-OB2X
Working distance: 36mm
Magnification: 66-390X (on 19 to 22 inch monitor) |
Probe |
Code: ISD-V-PROBE
lncludes Ø2mm and Ø3mm styli, Ø25mm calibration ball |

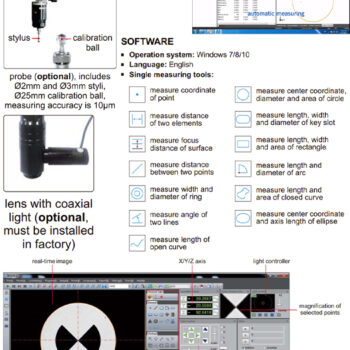

Vision measuring system with coxial light lens (with computer) |
Code: ISD-V150ACL, ISD-V250ACL, ISD-V300ACL, ISD-V400ACL |
Office software |
Code: 7313-OFFICE |
