SMC Pilot Operated 4/5 Port Solenoid Valves Plug-in Compact 5-Port JSY1000/3000/5000 Series

Solenoid valves and manifolds feature low power consumption, high flow rates, quick response times and clean aesthetic designs. Solenoid valves are used extensively in the semi conductor, automotive,  packaging, medical, specialty machine, and machine tool industries. Whatever your application is, we have a dependable solenoid valve series that will accommodate your most demanding application.

JSY series is a 5-port directional control valve targeted for the robotic arms and end of arm tools. It has compact and lightweight design while improving its flow characteristics. JSY series is available as plug-in and non plug-in types. There are 3 valve body sizes available for JSY series, JSY1000 (6.4mm), JSY3000 (10mm) and JSY5000 (15mm). JSY1000 is the world’s smallest width 5 port valve with body width of 6.4mm.

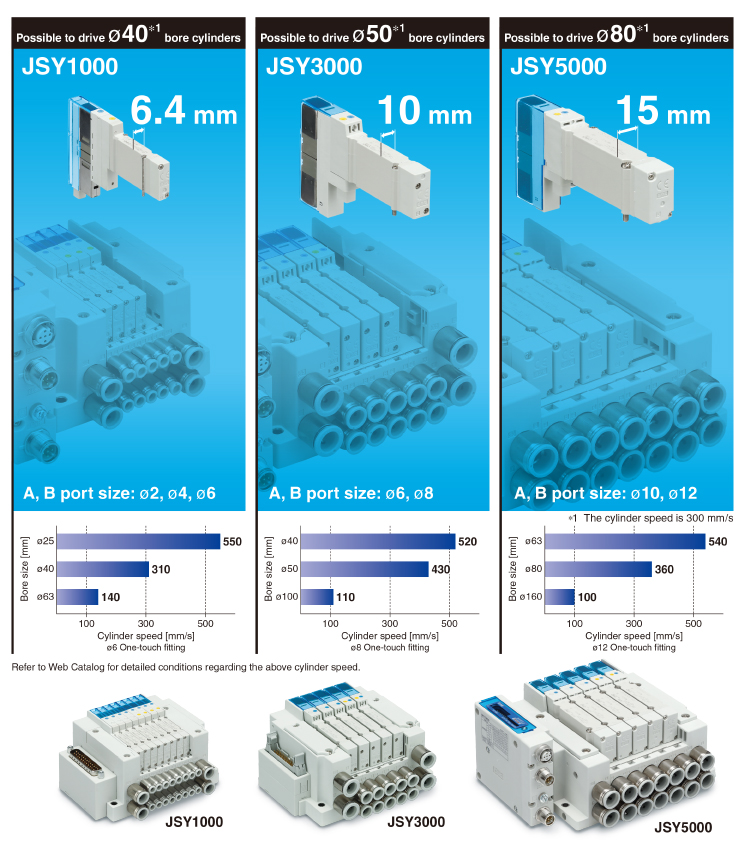

Plug-in type for JSY series is available in 3 valve body sizes, JSY1000 (6.4mm), JSY3000 (10mm) and JSY5000 (15mm). JSY plug-in type is compatible with fieldbus, ethernet and wireless communication module such as EX600 and EX260.

SMC Pilot Operated 4/5 Port Solenoid Valves Plug-in Compact 5-Port JSY1000/3000/5000 Series Feature:

  • Can be directly mounted on two surfaces.

  • Plug-in type flow rate (Cv): JSY1000: 0.27; JSY3000: 0.70; JSY5000: 1.65

  • Valve body width: JSY1000: 6.4mm; JSY3000: 10mm; JSY5000: 15mm

  • IP67 protection rating (JSY1000: IP40)

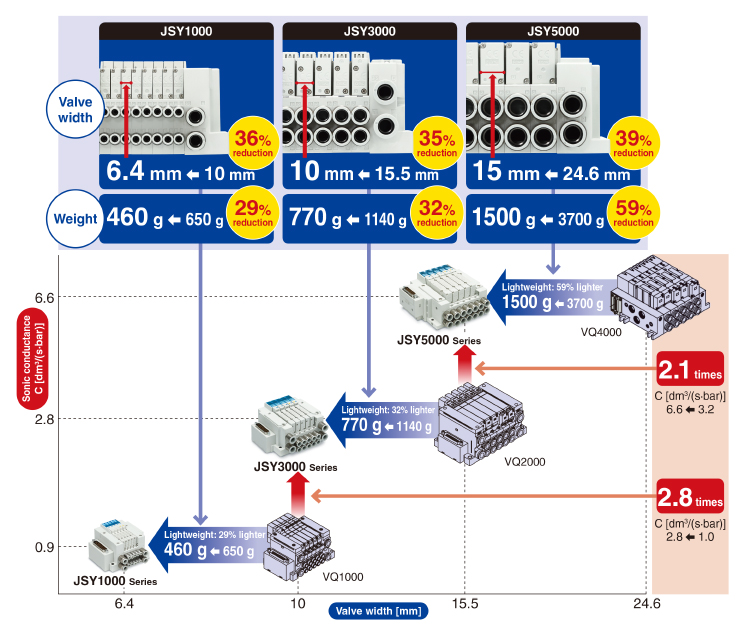

  • Size reduction possible thanks to a flow increase

  • This leads to space saving, weight reduction, large flow rate.

  • Power Consumption: 0.1W (With power saving circuit Made to Order), 0.4 W (Standard)

  • 4-Position Dual 3-Port Valve Available
