Ordering Guide for UVEX LASERVISION Safety Goggle 4mm Filter for 400-670nm laser radiation R01T1B091001:
COATING: |
no coating |
FILTER CURVATURE: |
Planes filter |
NORMS: |
EN 208 adjustment protection |
UPHOLSTERY: |
no padding |
TYPE OF GLASSES: |
Safety glasses with Rx insert possible |
CHARACTERISTICS: |
adjustable temples with glass composite |
VERSION: |
R01 |
FILTER: |
T1B09 |
FILTER COLOR: |
Dark gray |
COLOR VIEW: |
Good |
FILTER THICKNESS: |
approx 4mm |
FILTER MATERIAL: |
Glass |
FILTER TECHNOLOGY: |
Absorption filter |
PROTECTION AREA: |
Visible |
VISUAL BRIGHTNESS: |
Low |
VLT (APPROX.): |
1% |
- Item number: R01T1B091001
- GTIN: 4050369022591
- Packaging Unit: 1 piece
- Weight including packaging: 0.44 kg
- Weight without packaging: 0.10 kg
Application for UVEX LASERVISION Safety Goggle 4mm Filter for 400-670nm laser radiation R01T1B091001:

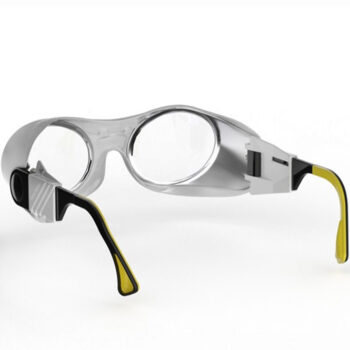

Laser safety glasses R01.T1B09.1001
The laservision laser safety glasses R01.T1B09.1001 are suitable for the adjustment of visible laser radiation in the range 400-670nm and only offer adjustment protection. The laser safety goggles can be combined with an Rx insert. The temple glasses with adjustable temples and gray filters are characterized by their low weight and a good field of vision. The delivery takes place in a metal box, which can also be used for storage.
WAVELENGTH (NM) |
OD |
OPERATING MODE / TESTED PROTECTION LEVEL |
180-315 |
(OD10 +) |
D LB10 + IR LB4 + M LB6Y |
> 315 – 462 |
(OD8 +) |
D LB7 + IR LB8 + M LB8Y |
> 462 – 466 |
(OD6 +) |
DIRM LB6 |
> 466 – 472 |
(OD4 +) |
DIRM LB4 |
> 472 – 490 |
(OD1 +) |
DIRM LB1 |
735 – <830 |
(OD1 +) |
DIRM LB1 |
830 – <880 |
(OD4 +) |
DIRM LB4 |
880 – <910 |
(OD6 +) |
DIRM LB6 |
910- <940 |
(OD7 +) |
DIRM LB7 |
940-1055 |
(OD8 +) |
D LB7 + IR LB8 + M LB8Y |
> 1055-1064 |
(OD7 +) |
DIRM LB7 |
> 1064-1075 |
(OD6 +) |
DIRM LB6 |
> 1075-1084 |
(OD5 +) |
DIRM LB5 |
> 1084-1095 |
(OD4 +) |
DIRM LB4 |
> 1095 – 1150 |
(OD1 +) |
DIRM LB1 |
3945 – <5180 |
(OD4 +) |
DI LB4 + R LB3Y |
5180-25000 |
(OD7 +) |
D LB5 + I LB5Y + R LB3Y |
