Ordering Guide for UVEX LASERVISION Safety Goggle for UV and VIS spectral range (180-578nm) R14.T1E03.1002:
COATING: |
no coating |
FILTER CURVATURE: |
Planes filter |
NORMS: |
EN 207 full protection |
UPHOLSTERY: |
Soft foam (W) |
TYPE OF GLASSES: |
Over glasses with headband |
CHARACTERISTICS: |
with glass composite |
VERSION: |
R14 |
FILTER: |
T1E03 |
FILTER COLOR: |
red |
COLOR VIEW: |
Limited |
FILTER THICKNESS: |
about 3-4mm |
FILTER MATERIAL: |
Mineral glass |
FILTER TECHNOLOGY: |
Absorption filter |
PROTECTION AREA: |
Visible
ultraviolet |
VISUAL BRIGHTNESS: |
Sufficient |
VLT (APPROX.): |
5% |
- Item number: R14T1E031002
- GTIN: 4050369019393
- Packaging Unit: 1 piece
- Weight including packaging: 0.63 kg
- Weight without packaging: 0.19 kg
Application for UVEX LASERVISION Safety Goggle for UV and VIS spectral range (180-578nm) R14.T1E03.1002:

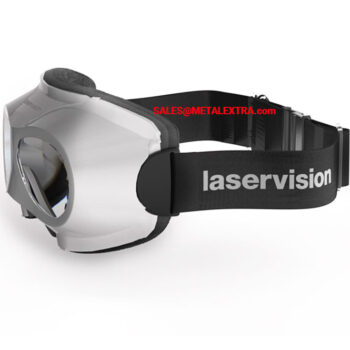

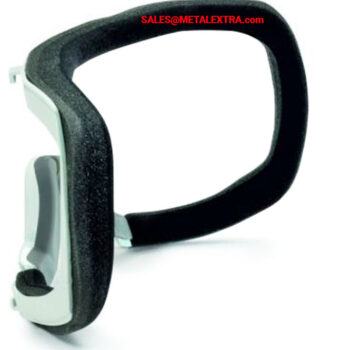

The laservision laser safety glasses R14.T1E03.1002 with soft foam padding (W) offer high levels of protection in the UV and VIS spectral range (180-578nm). The goggles with red filters can be worn over average sized prescription glasses. The exchangeable clip-on frame with soft foam padding makes the over-glasses particularly comfortable to wear. The delivery takes place in a metal box, which can also be used for storage.
WAVELENGTH (NM) |
OD |
OPERATING MODE / TESTED PROTECTION LEVEL |
180-315 |
(OD9 +) |
D LB9 + IR LB5 + M LB6Y |
> 315-515 |
(OD8 +) |
D LB6 + IR LB8 + M LB7Y |
> 515-578 |
(OD7 +) |
D LB6 + IR LB7 + M LB7Y |
