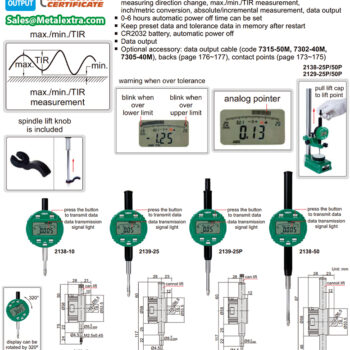

Dimensi INSIZE Digital Test Indicator 2138 with Transmission button + signal light (TIR, Resolution 0.001mm) Range; 12.7mm – 50.8mm :
Order Guide INSIZE Digital Test Indicator 2138 with Transmission button + signal light (TIR, Resolution 0.001mm/0.00005″) Range; 12.7mm – 50.8mm :
Order Code |
Range |
Accuracy |
Hysteresis |
Maximum measuring force |
Remark |
2138-10F* |
12.7mm/0.5″ |
5µm |
2µm |
1.5N |
flat back |
2138-25F* |
25.4mm/1″ |
5µm |
3µm |
2.2N |
flat back |
2138-50F* |
50.8mm/2″ |
6µm |
3µm |
2.5N |
flat back |
2138-10 * |
12.7mm/0.5″ |
5µm |
2µm |
1.5N |
lug back |
2138-25 * |
25.4mm/1″ |
5µm |
3µm |
2.2N |
lug back |
2138-50 * |
50.8mm/2″ |
6µm |
3µm |
2.5N |
lug back |
2138-25P* |
25.4mm/1″ |
5µm |
3µm |
2.2N |
flat back, with lift cap |
2138-50P* |
50.8mm/2″ |
6µm |
3µm |
2.5N |
flat back, with lift cap |
1) ± 1 digit *Supplied with manufacturer inspection certificate traceable to NIST USA
2) Values ± 20%, indicator in vertical position, outgoing measuring spindle
Order Guide INSIZE Digital Test Indicator 2138 with Transmission button + signal light (TIR, Resolution 0.001mm/0.00005″) Range; 12.7mm – 50.8mm :
Order Code |
Range |
Accuracy |
Hysteresis |
Maximum measuring force |
Remark |
2139-10F * |
12.7mm/0.5″ |
20µm |
10µm |
1.5N |
flat back |
2139-25F * |
25.4mm/1″ |
20µm |
10µm |
2.2N |
flat back |
2139-50F * |
50.8mm/2″ |
30µm |
10µm |
2.5N |
flat back |
2139-10 * |
12.7mm/0.5″ |
20µm |
10µm |
1.5N |
lug back |
2139-25 * |
25.4mm/1″ |
20µm |
10µm |
2.2N |
lug back |
2139-50 * |
50.8mm/2″ |
30µm |
10µm |
2.5N |
lug back |
2139-25P* |
25.4mm/1″ |
20µm |
10µm |
2.2N |
flat back, with lift cap |
2139-50P* |
50.8mm/2″ |
30µm |
10µm |
2.5N |
flat back, with lift cap |
1) ± 1 digit *Supplied with manufacturer inspection certificate traceable to NIST USA
2) Values ± 20%, indicator in vertical position, outgoing measuring spindle
