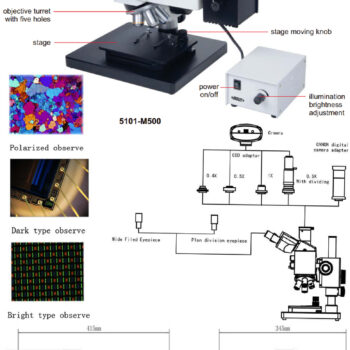

Dimension Guide of INSIZE Industrial Microscope 5101-M500 (50X~500X) Light field objective, field of view: ø22mm, ±5 diopter :
Ordering Guide of INSIZE Industrial Microscope 5101-M500 (50X~500X) Light field objective, field of view: ø22mm, ±5 diopter :
Order code |
5101-M500**(Bright Field Objective) |
5101-M500BD**(light and dark field objective) |
Light |
Halogen lamp 6V/30W, dimmable |
Halogen lamp 12V/50W, dimmable |
Objective lens |
bright field objective |
light and dark field objective |
5X |
10X |
20X |
50X |
5X |
10X |
20X |
50X |
Working range |
26.1mm |
20.2mm |
8.80mm |
3.68mm |
9.70mm |
9.30mm |
7.23mm |
2.50mm |
Aperture No |
0.12 |
0.25 |
0.4 |
0.7 |
0.12 |
0.25 |
0.4 |
0.7 |
Magnification |
50X~500X |
Eyepiece (wide field of view) |
10X (field of view: ø22mm) |
Examination table |
double layer |
Size: 160x140mm |
stroke: 35x30mm |
Pupil distance |
53~75mm |
Adjust the tread |
±5 diopters (one eyepiece) |
Electricity supply |
220V, 50/60Hz** |
Dimensions (LxWxH) |
415x345x380mm |
Weight |
14kg |
STANDARD SHIPPING |
Main machine |
1 PC |
Dust cover |
1 PC |
**Add “-U” on code when input power is 110V, 50/60Hz
Accessories Guide of INSIZE Industrial Microscope 5101-M500BD (50X~500X) Light and dark field objective:
Light and dark objective field
(for 5101-M500BD) |
PL40X |
5101-M-BD40X |
PL60X |
5101-M-BD60X |
PL80X |
5101-M-BD80X |
PL100X |
5101-M-BD100X |
10X diverging eyepiece (0.1mm/div) |
5101-M-EPD10X |
Bright objective field
(for 5101-M500BD) |
PL40X |
5101-M-OB40X |
PL60X |
5101-M-OB60X |
PL80X |
5101-M-OB80X |
PL100X |
5101-M-OB100X |
Digital camera |
ISM-CM20, ISM-CM63, ISM-ZS70-S |
Camera adapter* |
5101-M-ADAPTER |
