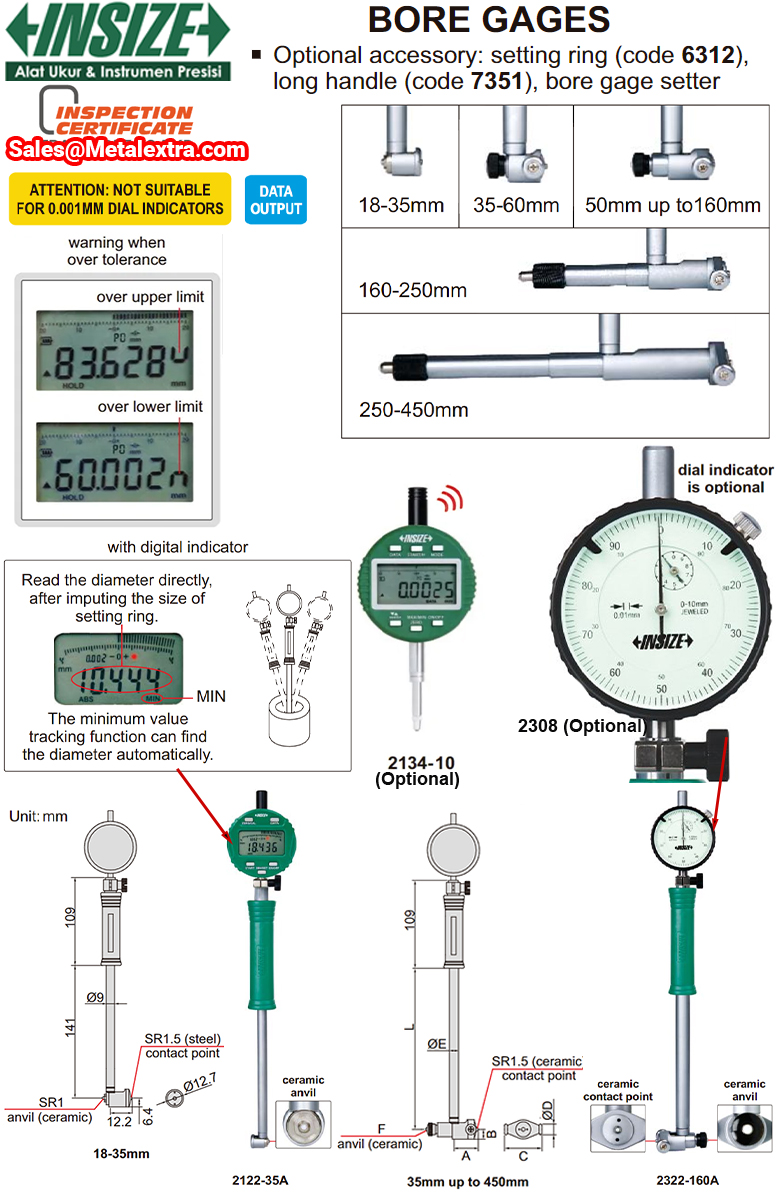

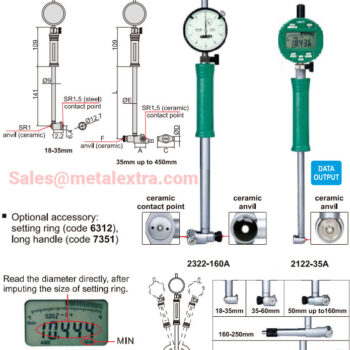

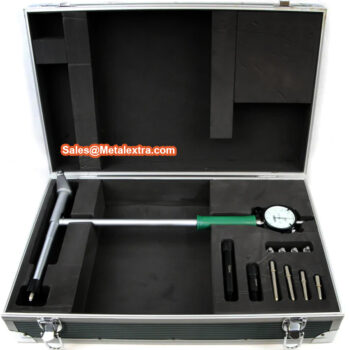

Dimension of INSIZE Bore Gages 2322 :
Dimension of INSIZE Bore Gages 2322 Shaft Rod:
Range |
A |
B |
C |
øD |
øE |
F |
L |
35-60mm |
22 |
9 |
27 |
13 |
12.8 |
SR2 |
141 |
50-100mm |
26 |
9 |
35 |
13 |
12.8 |
SR2 |
141 |
50-160mm |
26 |
9 |
35 |
13 |
12.8 |
SR2 |
141 |
100-160mm |
26 |
9 |
35 |
13 |
12.8 |
SR2 |
141 |
160-250mm |
56.5 |
13 |
74.5 |
15 |
12.8 |
SR2 |
241 |
250-450mm |
86.5 |
15 |
101.5 |
15 |
14.5 |
SR2.5 |
241 |
Order Guide INSIZE Bore Gages 2322 ⌀18-450mm DIAL INDICATOR:
Order Code |
Range |
Indicator |
Accuracy |
Repeatability |
2322-35A |
18-35mm |
dial indicator, range 10mm, graduation 0.01 mm (code 2308-10FA) |
±0.015mm |
0.003mm |
2322-60A |
35-60mm |
±0.018mm |
0.003mm |
2322-100A |
50-100mm |
±0.018mm |
0.003mm |
2322-160A |
50-160mm |
±0.018mm |
0.003mm |
2322-161A |
100-160mm |
±0.018mm |
0.003mm |
2322-250A |
160-250mm |
±0.018mm |
0.003mm |
2322-450A |
250-450mm |
±0.018mm |
0.003mm |
Supplied with manufacturer inspection certificate
Order Guide INSIZE Bore Gages 2322 ⌀18-450mm DIGITAL INDICATOR:
Order Code |
Range |
Indicator |
Accuracy |
Repeatability |
2122-35A |
18-35mm |
digital indicator, range 12.7mm/0.5″, resolution 0.01mm/0.0005″ (code 2108-1 OF) |
±0.015mm |
0.003mm |
2122-60A |
35-60mm |
±0.018mm |
0.003mm |
2122-100A |
50-100mm |
±0.018mm |
0.003mm |
2122-160A |
50-160mm |
±0.018mm |
0.003mm |
2122-161A |
100-160mm |
±0.018mm |
0.003mm |
2122-250A |
160-250mm |
±0.018mm |
0.003mm |
2122-450A |
250-450mm |
±0.018mm |
0.003mm |
Supplied with manufacturer inspection certificate
