Order Guide KENNAMETAL Kenloc™ Toolholders PWLN 95° For Negative Style Inserts:
Product # | 1192399 |
ISO Catalog Number | PWLNR2525M08 |
ANSI Catalog Number | PWLNR2525M08 |
[H] Shank Height Metric | 25 |
[B] Shank Width Metric | 25 |
[F] F Dimension Metric | 32 |
[L1] Tool Length Metric | 150 |
[LH]Head Length Metric | 26 |
Catalog Gage Insert 1 | WN..08 |
Clamp Screw ID Drive Size | 15 IP |

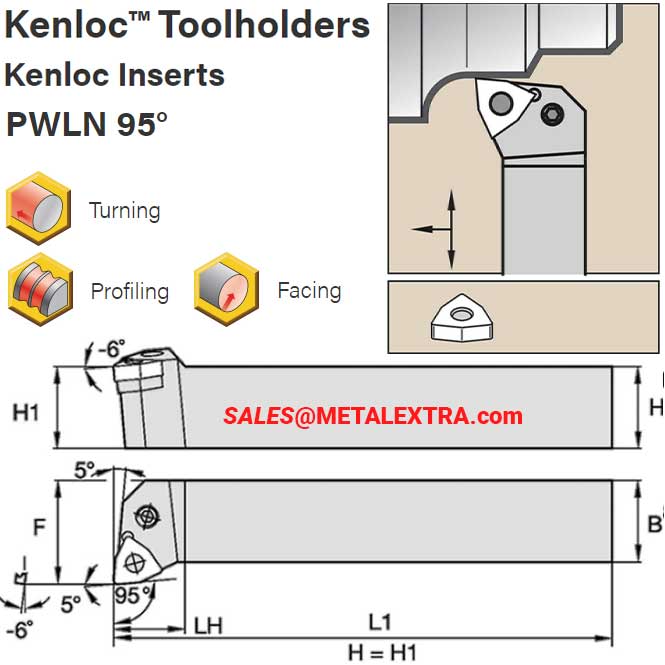

Dimension Guide KENNAMETAL Kenloc™ Toolholders PWLN 95° For Negative Style Inserts:
Alternatives Guide KENNAMETAL Kenloc™ Toolholders PWLN 95° For Negative Style Inserts:
Product # | ISO Catalog Number | ANSI Catalog Number | [H] Shank Height Metric | [B] Shank Width Metric | [F] F Dimension Metric | [L1] Tool Length Metric | [LH]Head Length Metric | Catalog Gage Insert 1 | Clamp Screw ID Drive Size |
1192396 | PWLNL1616H06 | PWLNL1616H06 | 16 | 16 | 20 | 100 | 14 | WN..06 | 10 IP |
1192397 | PWLNR2020K06 | PWLNR2020K06 | 20 | 20 | 25 | 125 | 14 | WN..06 | 10 IP |
1192398 | PWLNR2020K08 | PWLNR2020K08 | 20 | 20 | 25 | 125 | 20 | WN..08 | 15 IP |
1192399 | PWLNR2525M08 | PWLNR2525M08 | 25 | 25 | 32 | 150 | 26 | WN..08 | 15 IP |
1244767 | PWLNL2020K06 | PWLNL2020K06 | 20 | 20 | 25 | 125 | 14 | WN..06 | 10 IP |
1244768 | PWLNL2020K08 | PWLNL2020K08 | 20 | 20 | 25 | 125 | 20 | WN..08 | 15 IP |
1244769 | PWLNL2525M08 | PWLNL2525M08 | 25 | 25 | 32 | 150 | 26 | WN..08 | 15 IP |
1244770 | PWLNL3225P08 | PWLNL3225P08 | 32 | 25 | 32 | 170 | 26 | WN..08 | 15 IP |
1244771 | PWLNR1616H06 | PWLNR1616H06 | 16 | 16 | 20 | 100 | 14 | WN..06 | 10 IP |
1244772 | PWLNR3225P08 | PWLNR3225P08 | 32 | 25 | 32 | 170 | 26 | WN..08 | 15 IP |
