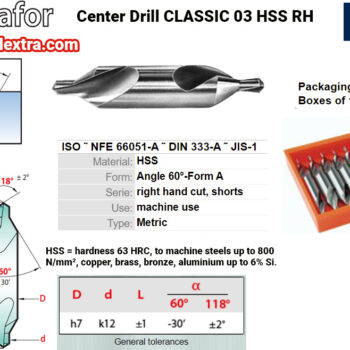

Dimension Guide for MAGAFOR Center Drill HSS Form A (Angle 60°), ISO NFE 66051-A, DIN 333-A, JIS-1, Ø3mm – Ø25mm:
Order Guide for MAGAFOR Center Drill HSS Form A (Angle 60°), ISO NFE 66051-A, DIN 333-A, JIS-1, Ø3mm – Ø25mm:
Order Code |
Dxd |
L |
ℓ |
80030315050 |
3,15×0,5 * |
25 |
0,6-0,9 |
80030315080 |
3,15×0,8 * |
25 |
1,0-1,3 |
80030315100 |
3,15×1,0 |
31 |
1,3-1,7 |
80030315125 |
3,15×1,25 |
31 |
1,6-2,0 |
80030410000 |
4,0×1,0 |
35 |
1,3-1,7 |
80030416000 |
4,0×1,6 |
35 |
2,0-2,6 |
80030515000 |
5,0×1,5 |
40 |
2,0-2,6 |
80030520000 |
5,0×2,0 |
40 |
2,5-3,1 |
80030620000 |
6,0×2,0 |
45 |
2,5-3,1 |
80030632500 |
6,3×2,5 |
45 |
3,1-3,8 |
80030825000 |
8,0×2,5 |
50 |
3,1-3,8 |
80030830000 |
8,0×3,0 |
50 |
3,9-4,6 |
80030831500 |
8,0×3,15 |
50 |
3,9-4,6 |
80031030000 |
10,0×3,0 |
55 |
3,9-4,6 |
80031040000 |
10,0×4,0 |
55 |
5,0-5,9 |
80031240000 |
12,0×4,0 |
63 |
5,0-5,9 |
80031250000 |
12,0×5,0 |
63 |
6,3-7,2 |
80031255000 |
12,5×5,0 |
63 |
6,3-7,2 |
80031663000 |
16,0×6,3 |
71 |
8,0-8,9 |
80032080000 |
20,0×8,0 |
80 |
10,1-11,1 |
80032510000 |
25,0×10,0 |
100 |
12,8-13,8 |
NOTES: * Single end
