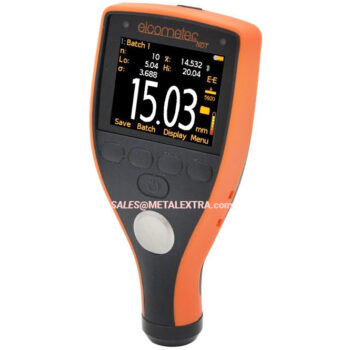

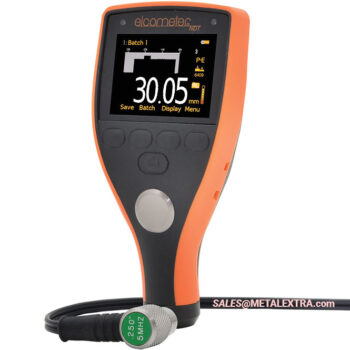

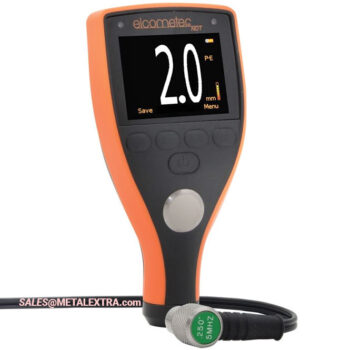

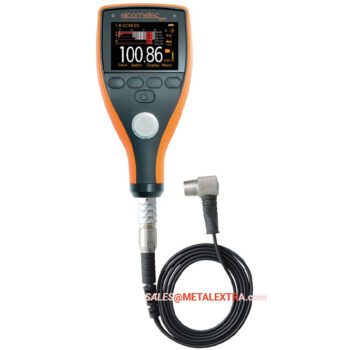

ELCOMETER Ultrasonic Material Thickness Gauge MTG2-TXC Max 0.63mm – 500mm

Gambar hanyalah ilustrasi, bisa berubah sewaktu-waktu. Harga yang tertera disini sebagai referensi tidak mengikat. Harga penawaran sah lewat kuotasi saja.

harga/unit:

Rp21.950.000

Info selengkapnya:

Sales@METALEXTRA.com

Categories: , Tags: , , ,

ELCOMETER Ultrasonic Material Thickness Gauge MTG2 menawarkan solusi praktis pengukuran ketebalan material maupun lapisan cat dan coating pada permukaan benda logam ferrous maupun non-ferrous baja dengan kisaran rentang ketebalan 0.63 hingga 500mm (0.025 – 19.999″). Menggunakan metode suara Ultrasonik, alat uji ini memiliki sensor transduser otomatis yang memastikan identifikasi probe selalu akurat bahkan ketika transduser diubah, tingkat pengukuran 4Hz (4 pembacaan per detik) dan integral nol disk memastikan akurasi maksimum ± 1% sesuai dengan standar ASTM E797, EN 14127, EN15317.

Aplikasi tergantung dari jenis probe yang digunakan. ELCOMETER Ultrasonic Material Thickness Gauge MTG2 sangat ideal untuk mengambil pengukuran ketebalan ultrasonik dasar. MTG2 dipasok lengkap dengan 5MHz, transduser ¼ ”dan telah dikalibrasi untuk mengukur baja hanya dengan kisaran ketebalan hingga 500mm (20”) dalam mode Pulsed-Echo (P-E). Kompatibel dengan perangkat software ElcoMaster® dan Aplikasi Seluler ElcoMaster®, anda dapat menyimpan data pengukuran ketebalan cat melalui kabel USB atau Bluetooth® ke PC maupun perangkat smartphone berbasis Iphone maupun Android untuk analisis dan pembuatan laporan instan.

Sejak 1947, Elcometer Ltd. memproduksi beragam alat ukur pendeteksi pelapis coating dan peralatan inspeksi beton, rebar, dan deteksi logam. Produk-produk Elcometer mengukur ketebalan lapisan, iklim, porositas, dan adhesi, serta berbagai parameter uji fisik yang diperlukan untuk formulasi pelapis tersebut. Pastikan keaslian dan kehandalan produk ELCOMETER dengan membelinya di www.METALEXTRA.com!

Fitur ELCOMETER Ultrasonic Material Thickness Gauge MTG2 :

  • Menguji dengan mode pengukuran Pulsed-Echo (P-E) mengukur baja dengan kisaran ketebalan hingga 500mm (20”)
  • Pra-kalibrasi hanya untuk mengukur pada baja, probe transducer bisa dibongkar pasang sesuai keperluan.
  • Tingkat pengukuran pra-set dari 4 pembacaan per detik
  • Kecepatan membaca responsif 60+ pembacaan per menit dalam mil dan mikron secara signifikan mengurangi waktu inspeksi.
  • Dapat menyimpan data pengukuran ketebalan cat melalui kabel USB atau Bluetooth® ke PC maupun perangkat smartphone berbasis Iphone maupun Android untuk analisis dan pembuatan laporan instan.
  • Desain ergonomis memberi Anda kenyamanan maksimal saat mengukur sepanjang hari.
  • Layar LED memungkinkan Anda membaca nilai ketebalan pada permukaan horizontal dan vertikal dan dalam kondisi pencahayaan apa pun.
  • Desain kokoh, debu, dan cipratan air setara dengan IP54, ideal untuk mengukur dalam kondisi basah atau kering dan perlindungan terhadap kerusakan yang tidak disengaja.
  • Dikirim satu set dengan: MTG2 unit lengkap dengan 5MHz transduser ¼ ” (TXC5M00CP-4), baterai AA x 2, case aksesoris, cairan pembersih couplant 120ml, unit telah dikalibrasi untuk mengukur baja hanya dengan kisaran ketebalan hingga 500mm (20”) dalam mode Pulsed-Echo (P-E).

Harap dicatat:

Gambar hanya untuk tujuan representasi. Produk mungkin berbeda dari yang ditunjukkan di atas. Diskon% dibulatkan ke Bilangan bulat terdekat. Harga bisa berubah sewaktu-waktu seiring dengan perubahan nilai tukar valuta asing dan program promosi. Untuk lebih jelas silahkan hubungi: sales@Metalextra.com

ELCOMETER Ultrasonic Material Thickness Gauge MTG2 :

Model MTG2 MTG4
Thickness Range3 Pulsed Echo 0.63 – 500mm (0.025 – 19.999″)
Echo-Echo ThruPaint™ – 2.54 – 20mm (0.100-0.787″)
Accuracy Pulsed Echo 0.63 – 19.99mm: ±0.1mm; 20 – 500mm: ±0.5% (0.025 – 0.787″: ±0.004″; 0.788 – 20″: ±0.5%)
Echo-Echo ThruPaint™ – ±0.1mm (±0.004″)
Velocity Range 1250 – 10,000m/s (0.0492 – 0.3937in/ps)
Resolution 0.1mm (0.01″)
Measurement Rate 4 Hz (4 readings per second)
Operating Temperature -10 to 50°C(14to 122°F)
Power Supply 2 x AA batteries
Battery Life Approximately 15 hours
Gauge Weight 210g (7.4oz) including batteries, without transducer
Gauge Dimensions 145x73x 37mm (5.7 x 2.87 x 1.46″) without transducer



Order Guide ELCOMETER Ultrasonic Material Thickness Gauge MTG2:

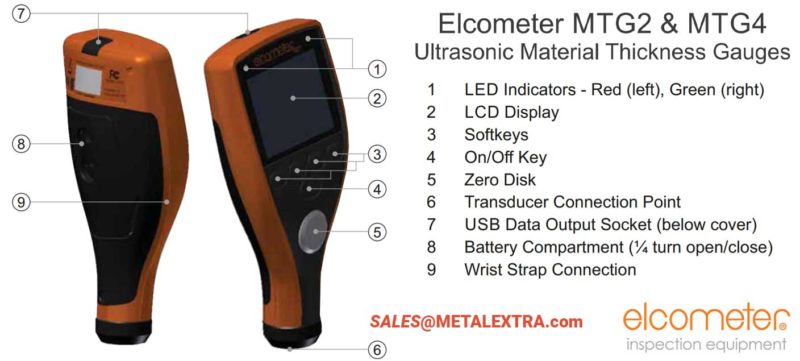

Product Features

Part Number (with Transducer)1

MTG2-TXC

Easy to use menu structure in multiple languages

■

Tough, impact, waterproof and dust resistant equivalent to IP54

■

Bright colour screen with permanent backlight

■

Ambient light sensor, with adjustable brightness

■

Scratch and solvent resistant display; 2.4″ (6cm) TFT

■

Large positive feedback buttons

■
USB power supply via PC

■

Gauge software updates2 via ElcoMaster® Software

■

2 year gauge warranty3

■

Measurement Rate

4Hz
Measurement Mode Range4 Accuracy5

■

Pulsed Echo (P-E)

 0.63-500mm ±0.1mm (0.63-19.99mm) ± 0.004″ (0.025-0.787″)
(0.025-20″) ±0.5% (20.00-500.00mm) ±0.5% (0.788-20.00″)

Measurement Units

mm or inches

Repeatability / Stability Indicator

■

Display Mode

Reading

Selectable Reading Resolution

Lo; 0.1mm, 0.01 Inch, 10m/s, or 0.001 in/μs

Calibration Options

Zero (using the integral zero disc)

Data Output

USB to PC

Transducer Probe Type

Dual Element
Auto transducer recognition

■
Auto V-path correction

■

Battery Type6

2 x AA

Battery Life6

Alkaline : 15 hours
Lithium: 28 hours

Operating Temperature

-10 to 50°C (14 to 122°F)

Size (w x h x d)

145 x 73 x 37mm (5.7 x 2.84 x 1.46″)
Gauge Weight (including batteries)

210g (7.4oz)
Packing List

Elcometer MTG2 Ultrasonic Material Thickness Gauge, 5MHz ¼” right angle dual element
transducer, ultrasonic couplant, carry pouch, screen protector, wrist harness, 2 x AA batteries,
operating instructions, calibration certificate & 2 year warranty extension card

STANDARDS ASTM E797, EN 14127, EN15317

1 5MHz 1/4″ right angle transducer supplied
2 Internet connection required
3 The Elcometer MTG range is extendable within 60 days from date of purchase, free of charge to two years
4 Dependent on the material being measured and the transducer being used
5 On steel
6 Approximate battery life, when in Continuous Reading Mode at a reading rate of 4Hz. Rechargeable batteries may differ.

Accesories ELCOMETER Ultrasonic Material Thickness Gauge MTG2:

Calibration Standard Sets
Part Number Description

T920CALSTD-SET1

 Calibration Standard Set;
Nominal Thickness; 2-30mm (0.08-1.18″)1
Comprising of nominal thickness; 2, 5, 10, 15, 20, 25 & 30mm (0.08, 0.20, 0.39, 0.59, 0.79, 0.98 & 1.18″), complete with holder and calibration certificate.

T920CALSTD-SET2

 Calibration Standard Set;
Nominal Thickness; 40 – 100mm (1.57 – 3.94″)1
Comprising of nominal thickness; 40, 50, 60, 70, 80, 90 & 100mm (1.57, 1.97, 2.36, 2.76, 3.15, 3.54 & 3.94″), complete with holder and calibration certificate

T920CALSTD-HLD

Calibration Holder;

for thicknesses up to 100mm (3.94″)

Individual Calibration Standards
Part Number

Nominal Thickness (mm)

Nominal Thickness (inches)1

T920CALSTD-2

 2 0.078

T920CALSTD-5

 5 0.196

T920CALSTD-10

 10 0.393

T920CALSTD-15

 15 0.590

T920CALSTD-20

 20 0.787

T920CALSTD-25

 25

0.984

T920CALSTD-30

 30 1.181

T920CALSTD-40

 40 1.574

T920CALSTD-50

 50

1.966

T920CALSTD-60

 60

2.362

T920CALSTD-70

 70

2.755

T920CALSTD-80

 80

3.149

T920CALSTD-90

 90

3.543

T920CALSTD-100

 100 3.937

Ultrasonic Couplant

T92015701

Ultrasonic Couplant; 120ml (4fl oz)

T92015701-5

Ultrasonic Couplant; 120ml (4fl oz), Pack of 5 Bottles

T92024034-7

Ultrasonic Couplant; 300ml (10fl oz)

T92024034-8

Ultrasonic Couplant; 500ml (17fl oz)

T92024034-3

Ultrasonic Couplant; 3.8l (1 US Gallon)

T92024034-9

High Temperature Couplant 371°C (700°F); 60ml (2fl oz)

T92024034-10

High Temperature Couplant 371°C (700°F); 60ml (2fl oz), Pack of 2



Transducer Adaptor

These adaptors allow single & dual element, ‘non-intelligent’ and other transducers with lemoconnectors from Elcometer NDT and other manufacturers, to be used with the MTG & PTG product range.

Part Number

Description

T92024911 Dual Element2

Transducer Adaptor

1 Imperial values for information purposes only. Calibration standards are manufactured and measured in millimeters.

2 This adaptor allows dual element, ‘non-intelligent’ and other transducers with Lemo Connectors from Elcometer and other manufacturers to be used with the MTG product range.

Material velocity test Chart for ELCOMETER Ultrasonic Material Thickness Gauge MTG2:

Elcometer Material Number

Material Description

(Chemical Symbol/Grouping)

Material Name

Sound Velocity

(m/sec)

Sound Velocity

(in/μsec)

Source of value

NPL = National Physical Laboratory

ASNT = The American Society for Non destructive testing

Industry = Industry knowledge
1 Fe

Iron (soft)

5960

0.235

NPL
2

Fe

Iron Cast

4990

0.196

NPL
3

Al

Aluminium

(7075-T6)

6350

0.250

ASNT
4

Ti

Titanium

6100

0.240

ASNT
5

Mg

Magnesium

5790

0.228

ASNT
6

Ni

Nickel

5630

0.222

ASNT
7

W

Tungsten

5180

0.204

ASNT
8

Cu

Copper

4660

0.183

ASNT
9

Zn

Zinc

4190

0.165

NPL
10

Ag

Silver

3600

0.142

Industry
11

Sn

Tin

3380

0.133

NPL
12

Pt

Platinum

3260

0.128

NPL
13

Au

Gold

3240

0.128

NPL
14

Cd

Cadmium

2780

0.109

NPL
15

Bi

Bismuth

2180

0.086

Industry
16

Pb

Lead

2160

0.085

ASNT
17

Cobalt-chromium Alloy

Stellite

6990

0.275

Industry
18

Iron Alloy

Steel (Carbon 1018)

5920

0.233

Industry
19

Iron Alloy

Steel (Alloy 4340)

5850

0.230

Industry
20

Nickel-chromium Alloy

Inconel (625)

5820

0.229

Industry
21

Silver Alloy

Stainless Steel,

(Austentic 304)

5660

0.233

ASNT
22

Copper Alloy

Constantan

5180

0.204

NPL
23

Non-metal

German Silver

4760

0.187

Industry
24

Non-metal

Brass (Naval)

4430

0.174

ASNT
25

Non-metal

Glass (Quartz)

5930

0.233

ASNT
26

Non-metal

Glass (Crown)

5660

0.223

NPL
27

Non-metal

Glass (Flint)

5260

0.207

NPL
28

Non-metal

Porcelain

5840

0.230

Industry
29

Non-metal

Plexiglas

2760

0.109

Industry
30

Non-metal

Glass Fibre

2740

0.108

Industry
31

Non-metal

Nylon

2680

0.106

NPL
32

Non-metal

Epoxy Resin

2540

0.100

Industry
33

Non-metal

Polystyrene

2350

0.093

NPL
34

Non-metal

PVC

2330

0.092

NPL
35

Non-metal

Rubber (Butyl)

1830

0.072

Industry
36

Non-metal

Rubber (Natural)

1600

0.063

NPL
37

Non-metal

Polyurethane

1780

0.070

Industry
38

Non-metal

Teflon

1400

0.055

NPL
39

Non-metal

Water

1490

0.059

ASNT
