INSIZE Thread Plug GO/NOGO Gauge Metric 4677 dirancang sebagai alat ukur limit gauge untuk perbandingan presisi sesuai dengan Standard ISO 1502. Setiap unit plug gauge ini bisa digunakan untuk memeriksa ulir halus atau fine thread pada ring gauge atau ulir thread metode uji GO dan NO GO.
Dalam fabrikasi produk yang menggunakan fastener, penggunaannya INSIZE Screw Thread Plug GO/NOGO Gauge Metric 4677 mirip dengan alat pengukur block gauge. Plug gauge ini dijual dengan nilai akurasi yang berbeda. Semakin tinggi grade, semakin rendah varians yang diijinkan dari diameter nominal.
Praktik standar untuk pengukur Screw thread gauge INSIZE 4677 ini menetapkan toleransi plus 5% dari toleransi lubang produk untuk pengukur go dan toleransi minus 5% untuk pengukur no-go, dengan total ulir toleransi 10%.
Toleransi diameter INSIZE Thread Plug Gauge Metric 4677 ini bervariasi, dalam setiap tingkatan, berdasarkan pada diameter nominal. Standar thread dari ISO menetapkan bahwa pengukur ulir harus mulai di bawah batas produk berulir dan diizinkan untuk memakai sedikit di luar diameter batas produk tersebut.
Sejak 1995, INSIZE merupakan manufaktur alat ukur yang sangat bervariatif dengan harga yang sangat terjangkau. Keaslian produk INSIZE hanya terjamin jika anda memperolehnya dari Metalextra.com.
Fitur INSIZE Check Plug Fine Thread Ring Gauge 4677 METRIC :
Rentang tersedia dari M3.5 – M120.
Standard IS01502
Setiap limit gauge presisi ukuran besar cenderung indent 2-3 minggu.
Terbuat dari material Alloy steel keras dengan hardness 60-62 HRC, Material: ohms (oil hardened non-shrinking steel)
Ada 3 pilihan akurasi Class 6g, 6e dan 6h, cocok untuk lini kerja QC production dan sebagai alat ukur consumable
Dilengkapi dengan sertifikat kalibrasi pabrikan.
Harap dicatat:
Gambar hanya untuk tujuan representasi. Produk mungkin berbeda dari yang ditunjukkan di atas. Diskon% dibulatkan ke Bilangan bulat terdekat. Harga bisa berubah sewaktu-waktu seiring dengan perubahan nilai tukar valuta asing dan program promosi. Untuk lebih jelas silahkan hubungi: Sales@Metalextra.com

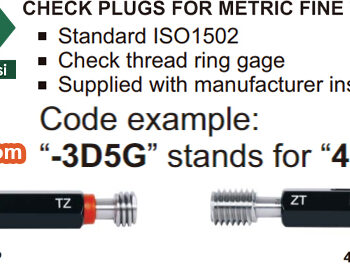

Technical Guide for INSIZE Check Plug Fine Thread Ring Gauge 4677 METRIC (Standard ISO1502, GO/NOGO Gauge) Range; M3.5 – M120:
Order Guide for INSIZE Check Plug Fine Thread Ring Gauge 4677 METRIC (Standard ISO1502, GO/NOGO Gauge) Range; M3.5 – M120:
| Size (mm) | Code (4677) | ||||||
| Class 6g | Class 6e | Class 6h | |||||
| Nominal diameter | Pitch | GO | NOGO | GO | NOGO | GO | NOGO |
| M3.5 | 0.5 | -3D5G | -3D5GN | -3D5GE | -3D5GEN | -3D5GH | -3D5GHN |
| M4 | 0.5 | -4G | -4GN | -4GE | -4GEN | -4GH | -4GHN |
| M4.5 | 0.5 | -4D5G | -4D5GN | -4D5GE | -4D5GEN | -4D5GH | -4D5GHN |
| M5 | 0.5 | -5G | -5GN | -5GE | -5GEN | -5GH | -5GHN |
| M5.5 | 0.5 | -5D5G | -5D5GN | -5D5GE | -5D5GEN | -5D5GH | -5D5GHN |
| M6 | 0.5 | -6G | -6GN | -6GE | -6GEN | -6GH | -6GHN |
| 0.75 | -6L | -6LN | -6LE | -6LEN | -6LH | -6LHN | |
| M6.5 | 0.5 | -6D5G | -6D5GN | -6D5GE | -6D5GEN | -6D5GH | -6D5GHN |
| M7 | 0.5 | -7G | -7GN | -7GE | -7GEN | -7GH | -7GHN |
| 0.75 | -7L | -7LN | -7LE | -7LEN | -7LH | -7LHN | |
| M7.5 | 0.5 | -7D5G | -7D5GN | -7D5GE | -7D5GEN | -7D5GH | -7D5GHN |
| 0.5 | -8G | -8GN | -8GE | -8GEN | -8GH | -8GHN | |
| M8 | 0.75 | -8L | -8LN | -8LE | -8LEN | -8LH | -8LHN |
| 1 | -8P | -8PN | -8PE | -8PEN | -8PH | -8PHN | |
| M8.5 | 0.5 | -8D5G | -8D5GN | -8D5GE | -8D5GEN | -8D5GH | -8D5GHN |
| 0.5 | -9G | -9GN | -9GE | -9GEN | -9GH | -9GHN | |
| M9 | 0.75 | -9L | -9LN | -9LE | -9LEN | -9LH | -9LHN |
| 1 | -9P | -9PN | -9PE | -9PEN | -9PH | -9PHN | |
| 0.5 | -10G | -10GN | -10GE | -10GEN | -10GH | -10GHN | |
| M10 | 0.75 1 |
-10L -10P |
-10LN -10PN |
-10LE -10PE |
-10LEN -10PEN |
-10LH -10PH |
-10LHN -10PHN |
| 1.25 | -10Q | -10QN | -10QE | -10QEN | -10QH | -10QHN | |
| 0.5 | -11G | -11GN | -11GE | -11GEN | -11GH | -11GHN | |
| M11 | 0.75 | -11L | -11LN | -11LE | -11LEN | -11LH | -11LHN |
| 1 | -11P | -11PN | -11PE | -11PEN | -11PH | -11PHN | |
| 0.5 | -12G | -12GN | -12GE | -12GEN | -12GH | -12GHN | |
| 0.75 | -12L | -12LN | -12LE | -12LEN | -12LH | -12LHN | |
| M12 | 1 | -12P | -12PN | -12PE | -12PEN | -12PH | -12PHN |
| 1.25 | -12Q | -12QN | -12QE | -12QEN | -12QH | -12QHN | |
| 1.5 | -12R | -12RN | -12RE | -12REN | -12RH | -12RHN | |
| 0.5 | -13G | -13GN | -13GE | -13GEN | -13GH | -13GHN | |
| M13 | 0.75 1 |
-13L -13P |
-13LN -13PN |
-13LE -13PE |
-13LEN -13PEN |
-13LH -13PH |
-13LHN -13PHN |
| 1.5 | -13R | -13RN | -13RE | -13REN | -13RH | -13RHN | |
| 0.5 | -14G | -14GN | -14GE | -14GEN | -14GH | -14GHN | |
| 0.75 | -14L | -14LN | -14LE | -14LEN | -14LH | -14LHN | |
| M14 | 1 | -14P | -14PN | -14PE | -14PEN | -14PH | -14PHN |
| 1.25 | -14Q | -14QN | -14QE | -14QEN | -14QH | -14QHN | |
| 1.5 | -14R | -14RN | -14RE | -14REN | -14RH | -14RHN | |
| 0.5 | -15G | -15GN | -15GE | -15GEN | -15GH | -15GHN | |
| M15 | 0.75 1 |
-15L -15P |
-15LN -15PN |
-15LE -15PE |
-15LEN -15PEN |
-15LH -15PH |
-15LHN -15PHN |
| 1.5 | -15R | -15RN | -15RE | -15REN | -15RH | -15RHN | |
| Size (mm) | Code (4677) | ||||||
| Class 6g | Class 6e | Class 6h | |||||
| Nominal diameter | Pitch | GO | NOGO | GO | NOGO | GO | NOGO |
| 0.5 | -16G | -16GN | -16GE | -16GEN | -16GH | -16GHN | |
| 0.75 | -16L | -16LN | -16LE | -16LEN | -16LH | -16LHN | |
| M16 | 1 | -16P | -16PN | -16PE | -16PEN | -16PH | -16PHN |
| 1.25 | -16Q | -16QN | -16QE | -16QEN | -16QH | -16QHN | |
| 1.5 | -16R | -16RN | -16RE | -16REN | -16RH | -16RHN | |
| 0.5 | -17G | -17GN | -17GE | -17GEN | -17GH | -17GHN | |
| M17 | 0.75 1 |
-17L -17P |
-17LN -17PN |
-17LE -17PE |
-17LEN -17PEN |
-17LH -17PH |
-17LHN -17PHN |
| 1.5 | -17R | -17RN | -17RE | -17REN | -17RH | -17RHN | |
| 0.5 | -18G | -18GN | -18GE | -18GEN | -18GH | -18GHN | |
| 0.75 | -18L | -18LN | -18LE | -18LEN | -18LH | -18LHN | |
| M18 | 1 1.25 |
-18P -18Q |
-18PN -18QN |
-18PE -18QE |
-18PEN -18QEN |
-18PH -18QH |
-18PHN -18QHN |
| 1.5 | -18R | -18RN | -18RE | -18REN | -18RH | -18RHN | |
| 2 | -18T | -18TN | -18TE | -18TEN | -18TH | -18THN | |
| 0.5 | -19G | -19GN | -19GE | -19GEN | -19GH | -19GHN | |
| M19 | 0.75 1 |
-19L -19P |
-19LN -19PN |
-19LE -19PE |
-19LEN -19PEN |
-19LH -19PH |
-19LHN -19PHN |
| 1.5 | -19R | -19RN | -19RE | -19REN | -19RH | -19RHN | |
| 0.5 | -20G | -20GN | -20GE | -20GEN | -20GH | -20GHN | |
| 0.75 | -20L | -20LN | -20LE | -20LEN | -20LH | -20LHN | |
| M20 | 1 1.25 |
-20P -20Q |
-20PN -20QN |
-20PE -20QE |
-20PEN -20QEN |
-20PH -20QH |
-20PHN -20QHN |
| 1.5 | -20R | -20RN | -20RE | -20REN | -20RH | -20RHN | |
| 2 | -20T | -20TN | -20TE | -20TEN | -20TH | -20THN | |
| 0.75 | -21L | -21LN | -21LE | -21LEN | -21LH | -21LHN | |
| M21 | 1 | -21P | -21PN | -21PE | -21PEN | -21PH | -21PHN |
| 1.5 | -21R | -21RN | -21RE | -21REN | -21RH | -21RHN | |
| 0.75 | -22L | -22LN | -22LE | -22LEN | -22LH | -22LHN | |
| 1 | -22P | -22PN | -22PE | -22PEN | -22PH | -22PHN | |
| M22 | 1.25 | -22Q | -22QN | -22QE | -22QEN | -22QH | -22QHN |
| 1.5 | -22R | -22RN | -22RE | -22REN | -22RH | -22RHN | |
| 2 | -22T | -22TN | -22TE | -22TEN | -22TH | -22THN | |
| M23 | 0.75 | -23L | -23LN | -23LE | -23LEN | -23LH | -23LHN |
| 1 | -23P | -23PN | -23PE | -23PEN | -23PH | -23PHN | |
| 0.75 | -24L | -24LN | -24LE | -24LEN | -24LH | -24LHN | |
| 1 | -24P | -24PN | -24PE | -24PEN | -24PH | -24PHN | |
| M24 | 1.25 | -24Q | -24QN | -24QE | -24QEN | -24QH | -24QHN |
| 1.5 | -24R | -24RN | -24RE | -24REN | -24RH | -24RHN | |
| 2 | -24T | -24TN | -24TE | -24TEN | -24TH | -24THN | |
| 0.75 | -25L | -25LN | -25LE | -25LEN | -25LH | -25LHN | |
| M25 | 1 1.5 |
-25P -25R |
-25PN -25RN |
-25PE -25RE |
-25PEN -25REN |
-25PH -25RH |
-25PHN -25RHN |
| 2 | -25T | -25TN | -25TE | -25TEN | -25TH | -25THN | |
| 0.75 | -26L | -26LN | -26LE | -26LEN | -26LH | -26LHN | |
| M26 | 1 1.5 |
-26P -26R |
-26PN -26RN |
-26PE -26RE |
-26PEN -26REN |
-26PH -26RH |
-26PHN -26RHN |
| 2 | -26T | -26TN | -26TE | -26TEN | -26TH | -26THN | |
| 0.75 | -27L | -27LN | -27LE | -27LEN | -27LH | -27LHN | |
| M27 | 1 1.5 |
-27P -27R |
-27PN -27RN |
-27PE -27RE |
-27PEN -27REN |
-27PH -27RH |
-27PHN -27RHN |
| 2 | -27T | -27TN | -27TE | -27TEN | -27TH | -27THN | |
| 0.75 | -28L | -28LN | -28LE | -28LEN | -28LH | -28LHN | |
| M28 | 1 1.5 |
-28P -28R |
-28PN -28RN |
-28PE -28RE |
-28PEN -28REN |
-28PH -28RH |
-28PHN -28RHN |
| 2 | -28T | -28TN | -28TE | -28TEN | -28TH | -28THN | |
| Size (mm) | Code (4677) | ||||||
| Class 6g | Class 6e | Class 6h | |||||
| Nominal diameter | Pitch | GO | NOGO | GO | NOGO | GO | NOGO |
| M29 | 0.75 1 |
-29L -29P |
-29LN -29PN |
-29LE -29PE |
-29LEN -29PEN |
-29LH -29PH |
-29LHN -29PHN |
| 0.75 | -30L | -30LN | -30LE | -30LEN | -30LH | -30LHN | |
| 1 | -30P | -30PN | -30PE | -30PEN | -30PH | -30PHN | |
| M30 | 1.5 | -30R | -30RN | -30RE | -30REN | -30RH | -30RHN |
| 2 | -30T | -30TN | -30TE | -30TEN | -30TH | -30THN | |
| 3 | -30V | -30VN | -30VE | -30VEN | -30VH | -30VHN | |
| M31 | 0.75 | -31L | -31LN | -31LE | -31LEN | -31LH | -31LHN |
| 0.75 | -32L | -32LN | -32LE | -32LEN | -32LH | -32LHN | |
| M32 | 1 1.5 |
-32P -32R |
-32PN -32RN |
-32PE -32RE |
-32PEN -32REN |
-32PH -32RH |
-32PHN -32RHN |
| 2 | -32T | -32TN | -32TE | -32TEN | -32TH | -32THN | |
| 0.75 | -33L | -33LN | -33LE | -33LEN | -33LH | -33LHN | |
| 1 | -33P | -33PN | -33PE | -33PEN | -33PH | -33PHN | |
| M33 | 1.5 | -33R | -33RN | -33RE | -33REN | -33RH | -33RHN |
| 2 | -33T | -33TN | -33TE | -33TEN | -33TH | -33THN | |
| 3 | -33V | -33VN | -33VE | -33VEN | -33VH | -33VHN | |
| 1 | -34P | -34PN | -34PE | -34PEN | -34PH | -34PHN | |
| M34 | 1.5 | -34R | -34RN | -34RE | -34REN | -34RH | -34RHN |
| 2 | -34T | -34TN | -34TE | -34TEN | -34TH | -34THN | |
| 1 | -35P | -35PN | -35PE | -35PEN | -35PH | -35PHN | |
| M35 | 1.5 | -35R | -35RN | -35RE | -35REN | -35RH | -35RHN |
| 2 | -35T | -35TN | -35TE | -35TEN | -35TH | -35THN | |
| 1 | -36P | -36PN | -36PE | -36PEN | -36PH | -36PHN | |
| M36 | 1.5 2 |
-36R -36T |
-36RN -36TN |
-36RE -36TE |
-36REN -36TEN |
-36RH -36TH |
-36RHN -36THN |
| 3 | -36V | -36VN | -36VE | -36VEN | -36VH | -36VHN | |
| 1 | -38P | -38PN | -38PE | -38PEN | -38PH | -38PHN | |
| M38 | 1.5 | -38R | -38RN | -38RE | -38REN | -38RH | -38RHN |
| 2 | -38T | -38TN | -38TE | -38TEN | -38TH | -38THN | |
| 1 | -39P | -39PN | -39PE | -39PEN | -39PH | -39PHN | |
| M39 | 1.5 2 |
-39R -39T |
-39RN -39TN |
-39RE -39TE |
-39REN -39TEN |
-39RH -39TH |
-39RHN -39THN |
| 3 | -39V | -39VN | -39VE | -39VEN | -39VH | -39VHN | |
| 1.5 | -40R | -40RN | -40RE | -40REN | -40RH | -40RHN | |
| M40 | 2 | -40T | -40TN | -40TE | -40TEN | -40TH | -40THN |
| 3 | -40V | -40VN | -40VE | -40VEN | -40VH | -40VHN | |
| 1.5 | -42R | -42RN | -42RE | -42REN | -42RH | -42RHN | |
| M42 | 2 | -42T | -42TN | -42TE | -42TEN | -42TH | -42THN |
| 3 | -42V | -42VN | -42VE | -42VEN | -42VH | -42VHN | |
| M45 | 1.5 2 |
-45R -45T |
-45RN -45TN |
-45RE -45TE |
-45REN -45TEN |
-45RH -45TH |
-45RHN -45THN |
| 3 | -45V | -45VN | -45VE | -45VEN | -45VH | -45VHN | |
| M48 | 1.5 2 |
-48R -48T |
-48RN -48TN |
-48RE -48TE |
-48REN -48TEN |
-48RH -48TH |
-48RHN -48THN |
| 3 | -48V | -48VN | -48VE | -48VEN | -48VH | -48VHN | |
| M50 | 1.5 2 |
-50R -50T |
-50RN -50TN |
-50RE -50TE |
-50REN -50TEN |
-50RH -50TH |
-50RHN -50THN |
| 3 | -50V | -50VN | -50VE | -50VEN | -50VH | -50VHN | |
| 1.5 | -52R | -52RN | -52RE | -52REN | -52RH | -52RHN | |
| M52 | 2 3 |
-52T -52V |
-52TN -52VN |
-52TE -52VE |
-52TEN -52VEN |
-52TH -52VH |
-52THN -52VHN |
| 4 | -52X | -52XN | -52XE | -52XEN | -52XH | -52XHN | |
| 1.5 | -55R | -55RN | -55RE | -55REN | -55RH | -55RHN | |
| M55 | 2 3 |
-55T -55V |
-55TN -55VN |
-55TE -55VE |
-55TEN -55VEN |
-55TH -55VH |
-55THN -55VHN |
| 4 | -55X | -55XN | -55XE | -55XEN | -55XH | -55XHN | |
| Size (mm) | Code (4677) | ||||||
| Class 6g | Class 6e | Class 6h | |||||
| Nominal diameter | Pitch | GO | NOGO | GO | NOGO | GO | NOGO |
| 1.5 | -56R | -56RN | -56RE | -56REN | -56RH | -56RHN | |
| M56 | 2 3 |
-56T -56V |
-56TN -56VN |
-56TE -56VE |
-56TEN -56VEN |
-56TH -56VH |
-56THN -56VHN |
| 4 | -56X | -56XN | -56XE | -56XEN | -56XH | -56XHN | |
| 1.5 | -58R | -58RN | -58RE | -58REN | -58RH | -58RHN | |
| M58 | 2 3 |
-58T -58V |
-58TN -58VN |
-58TE -58VE |
-58TEN -58VEN |
-58TH -58VH |
-58THN -58VHN |
| 4 | -58X | -58XN | -58XE | -58XEN | -58XH | -58XHN | |
| 1.5 | -60R | -60RN | -60RE | -60REN | -60RH | -60RHN | |
| M60 | 2 3 |
-60T -60V |
-60TN -60VN |
-60TE -60VE |
-60TEN -60VEN |
-60TH -60VH |
-60THN -60VHN |
| 4 | -60X | -60XN | -60XE | -60XEN | -60XH | -60XHN | |
| 1.5 | -62R | -62RN | -62RE | -62REN | -62RH | -62RHN | |
| M62 | 2 3 |
-62T -62V |
-62TN -62VN |
-62TE -62VE |
-62TEN -62VEN |
-62TH -62VH |
-62THN -62VHN |
| 4 | -62X | -62XN | -62XE | -62XEN | -62XH | -62XHN | |
| 1.5 | -64R | -64RN | -64RE | -64REN | -64RH | -64RHN | |
| M64 | 2 3 |
-64T -64V |
-64TN -64VN |
-64TE -64VE |
-64TEN -64VEN |
-64TH -64VH |
-64THN -64VHN |
| 4 | -64X | -64XN | -64XE | -64XEN | -64XH | -64XHN | |
| 1.5 | -65R | -65RN | -65RE | -65REN | -65RH | -65RHN | |
| M65 | 2 3 |
-65T -65V |
-65TN -65VN |
-65TE -65VE |
-65TEN -65VEN |
-65TH -65VH |
-65THN -65VHN |
| 4 | -65X | -65XN | -65XE | -65XEN | -65XH | -65XHN | |
| 1.5 | -68R | -68RN | -68RE | -68REN | -68RH | -68RHN | |
| M68 | 2 3 |
-68T -68V |
-68TN -68VN |
-68TE -68VE |
-68TEN -68VEN |
-68TH -68VH |
-68THN -68VHN |
| 4 | -68X | -68XN | -68XE | -68XEN | -68XH | -68XHN | |
| 1.5 | -70R | -70RN | -70RE | -70REN | -70RH | -70RHN | |
| 2 | -70T | -70TN | -70TE | -70TEN | -70TH | -70THN | |
| M70 | 3 | -70V | -70VN | -70VE | -70VEN | -70VH | -70VHN |
| 4 | -70X | -70XN | -70XE | -70XEN | -70XH | -70XHN | |
| 6 | -70O | -70ON | -70OE | -70OEN | -70OH | -70OHN | |
| 1.5 | -72R | -72RN | -72RE | -72REN | -72RH | -72RHN | |
| 2 | -72T | -72TN | -72TE | -72TEN | -72TH | -72THN | |
| M72 | 3 | -72V | -72VN | -72VE | -72VEN | -72VH | -72VHN |
| 4 | -72X | -72XN | -72XE | -72XEN | -72XH | -72XHN | |
| 6 | -72O | -72ON | -72OE | -72OEN | -72OH | -72OHN | |
| 1.5 | -75R | -75RN | -75RE | -75REN | -75RH | -75RHN | |
| M75 | 2 3 |
-75T -75V |
-75TN -75VN |
-75TE -75VE |
-75TEN -75VEN |
-75TH -75VH |
-75THN -75VHN |
| 4 | -75X | -75XN | -75XE | -75XEN | -75XH | -75XHN | |
| 1.5 | -76R | -76RN | -76RE | -76REN | -76RH | -76RHN | |
| M76 | 2 3 |
-76T -76V |
-76TN -76VN |
-76TE -76VE |
-76TEN -76VEN |
-76TH -76VH |
-76THN -76VHN |
| 4 | -76X | -76XN | -76XE | -76XEN | -76XH | -76XHN | |
| 6 | -76O | -76ON | -76OE | -76OEN | -76OH | -76OHN | |
| M78 | 2 | -78T | -78TN | -78TE | -78TEN | -78TH | -78THN |
| 1.5 | -80R | -80RN | -80RE | -80REN | -80RH | -80RHN | |
| M80 | 2 3 |
-80T -80V |
-80TN -80VN |
-80TE -80VE |
-80TEN -80VEN |
-80TH -80VH |
-80THN -80VHN |
| 4 | -80X | -80XN | -80XE | -80XEN | -80XH | -80XHN | |
| 6 | -80O | -80ON | -80OE | -80OEN | -80OH | -80OHN | |
| M82 | 2 | -82T | -82TN | -82TE | -82TEN | -82TH | -82THN |
| Size (mm) | Code (4677) | ||||||
| Class 6g | Class 6e | Class 6h | |||||
| Nominal diameter | Pitch | GO | NOGO | GO | NOGO | GO | NOGO |
| 2 | -85T | -85TN | -85TE | -85TEN | -85TH | -85THN | |
| M85 | 3 4 |
-85V -85X |
-85VN -85XN |
-85VE -85XE |
-85VEN -85XEN |
-85VH -85XH |
-85VHN -85XHN |
| 6 | -85O | -85ON | -85OE | -85OEN | -85OH | -85OHN | |
| 2 | -90T | -90TN | -90TE | -90TEN | -90TH | -90THN | |
| M90 | 3 4 |
-90V -90X |
-90VN -90XN |
-90VE -90XE |
-90VEN -90XEN |
-90VH -90XH |
-90VHN -90XHN |
| 6 | -90O | -90ON | -90OE | -90OEN | -90OH | -90OHN | |
| 2 | -95T | -95TN | -95TE | -95TEN | -95TH | -95THN | |
| M95 | 3 4 |
-95V -95X |
-95VN -95XN |
-95VE -95XE |
-95VEN -95XEN |
-95VH -95XH |
-95VHN -95XHN |
| 6 | -95O | -95ON | -95OE | -95OEN | -95OH | -95OHN | |
| 2 | -100T | -100TN | -100TE | -100TEN | -100TH | -100THN | |
| M100 | 3 4 |
-100V -100X |
-100VN -100XN |
-100VE -100XE |
-100VEN -100XEN |
-100VH -100XH |
-100VHN -100XHN |
| 6 | -100O | -100ON | -100OE | -100OEN | -100OH | -100OHN | |
| 2 | -105T | -105TN | -105TE | -105TEN | -105TH | -105THN | |
| M105 | 3 4 |
-105V -105X |
-105VN -105XN |
-105VE -105XE |
-105VEN -105XEN |
-105VH -105XH |
-105VHN -105XHN |
| 6 | -105O | -105ON | -105OE | -105OEN | -105OH | -105OHN | |
| 2 | -110T | -110TN | -110TE | -110TEN | -110TH | -110THN | |
| M110 | 3 4 |
-110V -110X |
-110VN -110XN |
-110VE -110XE |
-110VEN -110XEN |
-110VH -110XH |
-110VHN -110XHN |
| 6 | -110O | -110ON | -110OE | -110OEN | -110OH | -110OHN | |
| 2 | -115T | -115TN | -115TE | -115TEN | -115TH | -115THN | |
| M115 | 3 4 |
-115V -115X |
-115VN -115XN |
-115VE -115XE |
-115VEN -115XEN |
-115VH -115XH |
-115VHN -115XHN |
| 6 | -115O | -115ON | -115OE | -115OEN | -115OH | -115OHN | |
| 2 | -120T | -120TN | -120TE | -120TEN | -120TH | -120THN | |
| M120 | 3 4 |
-120V -120X |
-120VN -120XN |
-120VE -120XE |
-120VEN -120XEN |
-120VH -120XH |
-120VHN -120XHN |
| 6 | -120O | -120ON | -120OE | -120OEN | -120OH | -120OHN | |
