Perkiraan rentang harga;

Gambar ilustrasi, bisa berubah sewaktu-waktu. Harga yang tertera disini sebagai referensi tidak mengikat. Harga penawaran sah lewat kuotasi saja.

Info selengkapnya:

Sales@METALEXTRA.com

Categories: , Tags: , , , , , ,

INSIZE Fixtures For Electronic Universal Testing Machines merupakan solusi presisi untuk membantu pengujian daya friksi dalam aplikasi uji karakter material dengan bantuan alat ukur force gage untuk ukur gaya tarik secara searah maupun bolak-balik secara mendatar. INSIZE Fixtures For Electronic Universal Testing Machines memang diperuntukkan untuk mesin stand vertikal.

Mesin Universal Testing Machine (UTM) digunakan untuk menguji kekuatan, fleksibilitas, atau kelenturan suatu material dengan cara menarik, mendorong, atau melengkungkannya hingga material tersebut berubah bentuk atau patah. Alat ini disebut “universal” karena mampu menguji berbagai jenis material—seperti logam, plastik, karet, kayu, dan kain—hanya dengan menggunakan satu mesin yang dilengkapi dengan berbagai aksesori tambahan. Anda bisa menggunakan beragam aksesoris maupun jig yang sesuai dengan model pengujian yang diinginkan.

Dengan mekanisme kawat tarik dengan katrol anchor, anda bisa menghitung koefisien Statis dan gaya rata-rata oleh mesin uji INSIZE UTM-E series. Dalam aplikasinya INSIZE Fixtures For Electronic Universal Testing Machines, parameter gaya bisa ditentukan berdasarkan berat dan arah gesekan yang digunakan bersamaan dengan menambahkan atau meletakkan beban pemberat diatas pelat tekan pada mesin INSIZE UTM-S series.

Framenya INSIZE Fixtures For Electronic Universal Testing Machines terbuat dari material pelat steel dan alloy yang solid membuatnya ideal untuk digunakan dengan tangan, atau dapat dipasang ke tempat uji. Pelat komponen jig terbuat dari material alloy steel dan memiliki lubang sekrup yang sesuai untuk memadukan alat ukur. Pemberat dijual terpisah.

Sejak 1995, INSIZE merupakan manufaktur alat ukur yang sangat bervariatif dengan harga yang sangat terjangkau. Keaslian produk INSIZE hanya terjamin jika anda memperolehnya dari Metalextra.com.

Fitur INSIZE Fixtures For Electronic Universal Testing Machines:

  • Mengukur Koefisien Gesekan (COF) dari spesimen

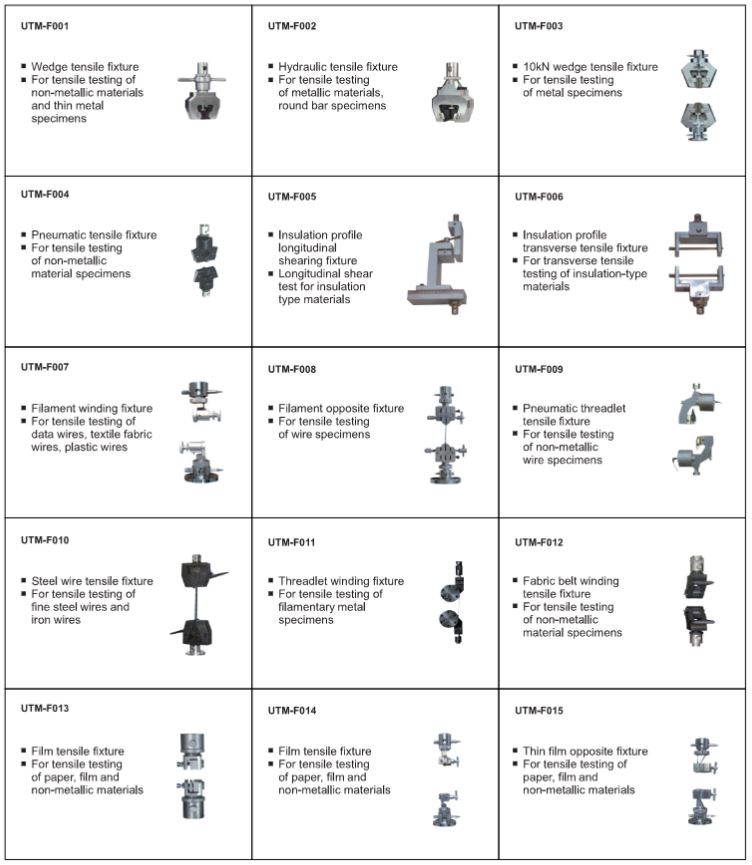

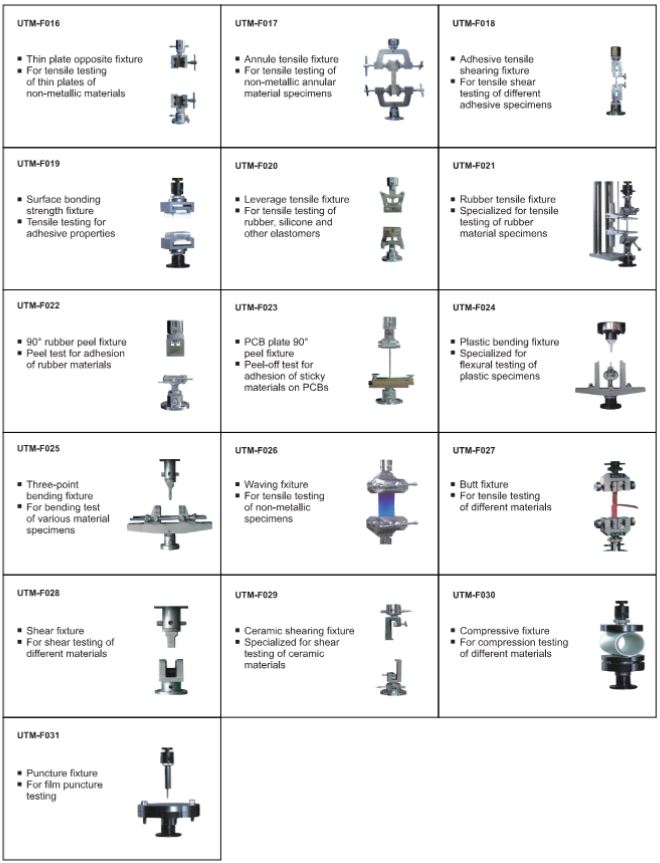

  • 28 model tersedia untuk memenuhi persyaratan pengujian Anda dan menangani berbagai sampel menggunakan Pemegang Kontaktor yang berbeda

  • Digunakan untuk menciptakan gaya vertikal dan uji gesekan bolak-balik

  • Sesuai untuk memenuhi standar uji ISO 7500/1 Class1, ASTM E4, BS 1610 Grade 1, Din 51221 Class1.

  • Tes cepat dimungkinkan untuk test tekan dan test tarik manual pada mesin UTM-E series dan UTM-S series

  • Harap perhatikan bahwa jig ini sifatnya “Made to order” dari China, dengan lead time ±14 Hari kerja.

Harap dicatat:

Gambar hanya untuk tujuan representasi. Produk mungkin berbeda dari yang ditunjukkan di atas. Diskon% dibulatkan ke Bilangan bulat terdekat. Harga bisa berubah sewaktu-waktu seiring dengan perubahan nilai tukar valuta asing dan program promosi. Untuk lebih jelas silahkan hubungi: Sales@Metalextra.com

Order Guide for INSIZE Fixtures For Electronic Universal Testing Machines (For UTM-E series and UTM-S series) Sample Thickness; ≥0.5mm :
