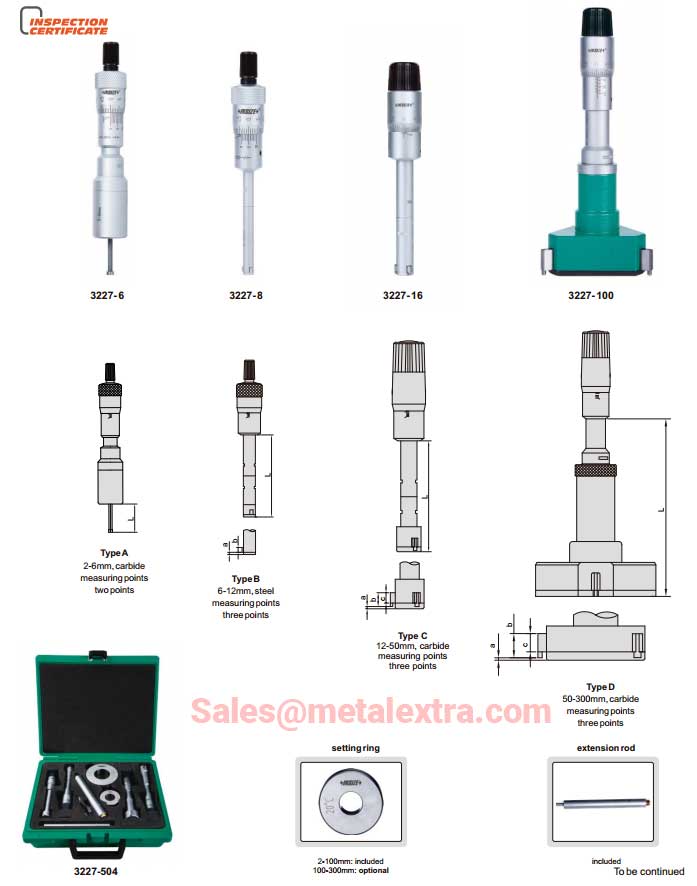

Dimension of INSIZE Internal Micrometer 3227:

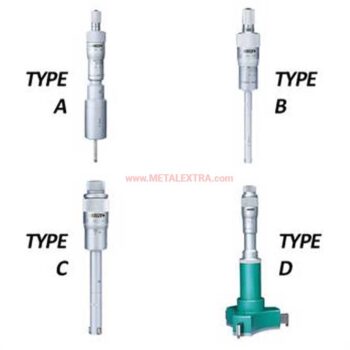

Order Guide INSIZE Internal Micrometer 3227 Per Pcs:
Code |
Range |
Type |
Accuracy |
Setting ring |
Extension rod (included) |
L |
a |
b |
c |
3227-2 * |
2-2.5mm |
A (two points) |
6µm |
02.5 (included) |
— |
12 |
— |
— |
— |
3227-3 * |
2.5-3mm |
A (two points) |
6µm |
02.5 (included) |
— |
12 |
— |
— |
— |
3227-4 * |
3-4mm |
A (two points) |
6µm |
04 (included) |
— |
22 |
— |
— |
— |
3227-5 * |
4-5mm |
A (two points) |
6µm |
05 (included) |
— |
22 |
— |
— |
— |
3227-6 * |
5-6mm |
A (two points) |
6µm |
06 (included) |
— |
22 |
— |
— |
— |
3227-8 * |
6-8mm |
B (three points) |
4µm |
06 (included) |
100 |
54.5 |
1.5 |
2.5 |
— |
3227-10* |
8-10mm |
B (three points) |
4µm |
08 (included) |
100 |
54.5 |
1.5 |
2.5 |
— |
3227-12* |
10-12mm |
B (three points) |
4µm |
010 (included) |
100 |
54.5 |
1.5 |
2.5 |
— |
3227-16* |
12-16mm |
C (three points) |
4µm |
016 (included) |
150 |
80 |
0.5 |
6 |
4.5 |
3227-20 * |
16-20mm |
C (three points) |
4µm |
016 (included) |
150 |
80 |
0.5 |
6 |
4.5 |
3227-25 * |
20-25mm |
C (three points) |
4µm |
025 (included) |
150 |
90 |
0.5 |
8 |
6 |
3227-30 * |
25-30mm |
C (three points) |
4µm |
025 (included) |
150 |
90 |
0.5 |
8 |
6 |
3227-40 * |
30-40mm |
C (three points) |
4µm |
040 (included) |
150 |
97 |
0.5 |
14 |
12 |
3227-50 * |
40-50mm |
C (three points) |
5µm |
040 (included) |
150 |
97 |
0.5 |
14 |
12 |
3227-63 * |
50-63mm |
D (three points) |
5µm |
062 (included) |
150 |
114 |
0.5 |
17.5 |
14.5 |
3227-75 * |
62-75mm |
D (three points) |
5µm |
062 (included) |
150 |
114 |
0.5 |
17.5 |
14.5 |
3227-88 * |
75-88mm |
D (three points) |
5µm |
087 (included) |
150 |
114 |
0.5 |
17.5 |
14.5 |
3227-100* |
87-100mm |
D (three points) |
5µm |
087 (included) |
150 |
114 |
0.5 |
17.5 |
14.5 |
3227-125* |
100-125mm |
D (three points) |
6µm |
optional |
150 |
140 |
0.9 |
29 |
25 |
3227-150* |
125-150mm |
D (three points) |
6µm |
optional |
150 |
140 |
0.9 |
29 |
25 |
3227-175* |
150-175mm |
D (three points) |
7µm |
optional |
150 |
140 |
0.9 |
29 |
25 |
3227-200 * |
175-200mm |
D (three points) |
7µm |
optional |
150 |
140 |
0.9 |
29 |
25 |
3227-225 |
200-225mm |
D (three points) |
8µm |
optional |
150 |
140 |
0.9 |
29 |
25 |
3227-250 |
225-250mm |
D (three points) |
8µm |
optional |
150 |
140 |
0.9 |
29 |
25 |
3227-275 |
250-275mm |
D (three points) |
9µm |
optional |
150 |
140 |
0.9 |
29 |
25 |
3227-300 |
275-300mm |
D (three points) |
9µm |
optional |
150 |
140 |
0.9 |
29 |
25 |
Supplied with manufacturer inspection certificate
Order Guide INSIZE Internal Micrometer 3227 per Set:
Code |
Range |
Micrometers included |
Setting ring (included) |
Extension rod (included) |
3227-232 * |
2-3mm |
2-2.5mm,2.5-3mm |
02.5mm |
— |
3227-363* |
3-6mm |
3-4mm, 4-5mm, 5-6mm |
04mm,05mm,06mm |
— |
3227-123* |
6-12mm |
6-8mm,8-10mm, 10-12mm |
06mm,08mm,01Omm |
100mm |
3227-202 * |
12-20mm |
12-16mm, 16-20mm |
016mm |
150mm |
3227-504* |
20-50mm |
20-25mm, 25-30mm, 30-40mm, 40-50mm |
025mm, 040mm |
150mm |
3227-1004* |
50-100mm |
50-63mm, 62-75mm, 75-88mm, 87-100mm |
062mm, 087mm |
150mm |
Supplied with manufacturer inspection certificate
