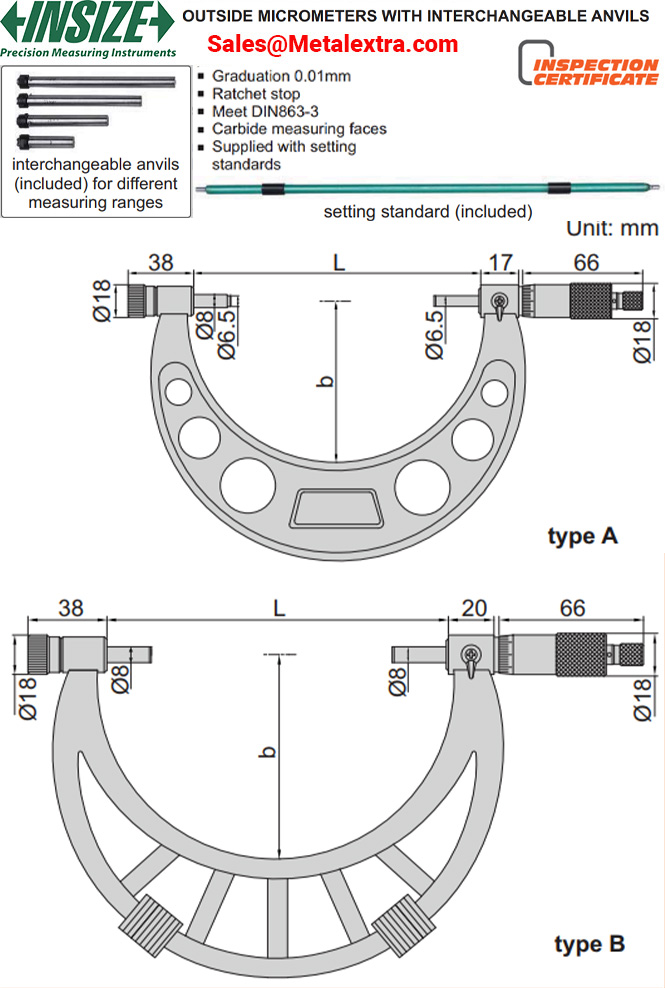

Dimension Guide of INSIZE Micrometer 3206 with Interchangeable Anvil, Graduation: 0.01mm, Ø50mm – Ø1000mm:
Order Guide of INSIZE Micrometer 3206 with Interchangeable Anvil, Graduation: 0.01mm, Ø50mm – Ø1000mm:
Metric type (Ratchet Type) |
Code |
Range |
Type |
Accuracy |
L |
b |
Setting standard (included) |
3206-50A |
0-50mm |
A |
4μm |
58 |
35 |
25 |
3206-100A |
0-100mm |
A |
5μm |
108 |
57 |
25, 50, 75 |
3206-150A |
0-150mm |
A |
6μm |
158 |
82 |
25, 50, 75, 100, 125 |
3206-151A |
50-150mm |
A |
6μm |
158 |
82 |
50, 75, 100, 125 |
3206-200A |
100-200mm |
A |
7μm |
208 |
117 |
100,125,150,175 |
3206-300A |
150-300mm |
A |
9μm |
308 |
165 |
150,175,200,225,250,000 |
3206-301A |
200-300mm |
A |
9μm |
308 |
165 |
200,225,250,275 |
3206-400 |
300-700mm |
A |
11μm |
409 |
227 |
325,375 |
3206-500 |
700-500mm |
A |
13μm |
509 |
275 |
425,475 |
3206-600 |
500-600mm |
B |
14μm |
609 |
321 |
525,575 |
3206-700 |
600-700mm |
B |
16μm |
709 |
371 |
625,675 |
3206-800 |
700-800mm |
B |
18μm |
809 |
426 |
725,775 |
3206-900 |
800-900mm |
B |
20μm |
909 |
476 |
825,875 |
3206-1000 |
900-1000mm |
B |
22μm |
1009 |
576 |
925,975 |
*Supplied with manufacturer inspection certificate traceable to DKD Germany
