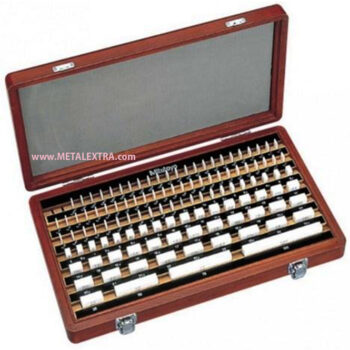

MITUTOYO Ceramic Gauge Block 88-piece set, Metric, Grade 1 516-371-11

Gambar hanyalah ilustrasi, bisa berubah sewaktu-waktu. Harga yang tertera disini sebagai referensi tidak mengikat. Harga penawaran sah lewat kuotasi saja.

harga/unit:

Info selengkapnya:

Sales@METALEXTRA.com

Categories: , Tags: , , ,

Set blok pengukur Mitutoyo ini terbuat dari keramik zirkonia. Material zirconia ini adalah bahan block gauge pengukur paling keras dan memberikan ketahanan aus terbaik dikombinasikan dengan kotak kayu yang tahan pada pemuaian suhu dan memiliki koefisien ekspansi yang sangat cocok dengan baja. Block Gauge dikalibrasi agar akurat pada 20 ° C (68 ° F) dan harus dijaga pada suhu ini saat melakukan pengukuran. Ini mengurangi efek ekspansi thermal. Setelah pemakaian, untuk melindungi blok pengukur agar tidak rusak, disarankan untuk segera dikemas kedalam kotaknya.

Tiap set  dan ukuran sangat baik digunakan sebagai alat pembanding dan  tahan gores jika digunakan pada alat ukur atau benda kerja dari bahan optik atau blok pengukur yang terbuat dari bahan lain.

Fitur Mitutoyo Ceramic Gauge Block 88-piece set, Metric, Grade 1 516-371-11:

  • Grade 1: Untuk kalibrasi dan pengaturan pengukur uji, pengukur referensi, dan untuk menyesuaikan instrumen pengukuran panjang serta untuk pengujian akurat dalam kontrol kualitas.

  • Blok pengukur keramik berbasis zirkonium, sangat stabil dan presisi yang baik untuk membandingkan dengan alat ukur bermaterial baja maupun material lainnya.

  • Setiap blok pengukur ditandai dengan nomor identifikasi.

  • Kekerasan blok pengukur adalah 1350 HV yang memberikan ketahanan aus yang ekstrem.

  • Set blok pengukur ditempatkan di kotak penyimpanan kayunya segera setelah kalibrasi.

Harap dicatat: Gambar hanya untuk tujuan representasi. Produk mungkin berbeda dari yang ditunjukkan di atas. Diskon% dibulatkan ke Bilangan bulat terdekat.

Type Sets
Range 1.0005mm,1.001-1.009mm by 0.001 step,1.01-1.49mm by 0.01 step,0.5-9.5mm by 0.5 step,10-100mm by 10 step
Accuracy Grade 1
Material Ceramic
Measuring Units Millimetre

Mitutoyo Ceramic Gauge Block 88-piece set, Metric, Grade 1 516-371-11 pilihan lain:

Blocks Per Set Order No Type Grade Blocks Included
112 516-337-26 CERA 0 Size
1 Block = 0.0005
9 Blocks =1.001-1.009 Step=0.001
49 Blocks =1.01-1.49 Step=0.01
49 Blocks =0.05-24.5 Step=0.5
4 Blocks =25-100 Step=25
112 516-338-26 CERA 0 Size
1 Block = 0.0005
9 Blocks =1.001-1.009 Step=0.001
49 Blocks =1.01-1.49 Step=0.01
49 Blocks =0.05-24.5 Step=0.5
4 Blocks =25-100 Step=25
112 516-339-26 CERA AS-1 Size
1 Block = 0.0005
9 Blocks =1.001-1.009 Step=0.001
49 Blocks =1.01-1.49 Step=0.01
49 Blocks =0.05-24.5 Step=0.5
4 Blocks =25-100 Step=25
112 516-340-26 CERA AS-2 Size
1 Block = 0.0005
9 Blocks =1.001-1.009 Step=0.001
49 Blocks =1.01-1.49 Step=0.01
49 Blocks =0.05-24.5 Step=0.5
4 Blocks =25-100 Step=25
103 516-341-26 CERA 0 Size
1 Block =1.005
49 Blocks =1.01-1.49 Step=0.01
49 Blocks =0.5-24.5 Step=0.5
4 Blocks =25-100 Step=25
103 516-342-26 CERA 0 Size
1 Block =1.005
49 Blocks =1.01-1.49 Step=0.01
49 Blocks =0.5-24.5 Step=0.5
4 Blocks =25-100 Step=25
103 516-343-26 CERA AS-1 Size
1 Block =1.005
49 Blocks =1.01-1.49 Step=0.01
49 Blocks =0.5-24.5 Step=0.5
4 Blocks =25-100 Step=25
103 516-344-26 CERA AS-2 Size
1 Block =1.005
49 Blocks =1.01-1.49 Step=0.01
49 Blocks =0.5-24.5 Step=0.5
4 Blocks =25-100 Step=25
87 516-345-26 CERA 0 Size
9 Blocks =1.005-1.009 Step=0.001
49 Blocks =1.01-1.49 Step=0.01
19 Blocks =0.5-9.5 Step=0.5
10 Blocks =10-100 Step=10
87 516-346-26 CERA 0 Size
9 Blocks =1.005-1.009 Step=0.001
49 Blocks =1.01-1.49 Step=0.01
19 Blocks =0.5-9.5 Step=0.5
10 Blocks =10-100 Step=10
87 516-347-26 CERA AS-1 Size
9 Blocks =1.005-1.009 Step=0.001
49 Blocks =1.01-1.49 Step=0.01
19 Blocks =0.5-9.5 Step=0.5
10 Blocks =10-100 Step=10
87 516-348-26 CERA AS-2 Size
9 Blocks =1.005-1.009 Step=0.001
49 Blocks =1.01-1.49 Step=0.01
19 Blocks =0.5-9.5 Step=0.5
10 Blocks =10-100 Step=10
56 516-353-26 CERA 0 Size
1 Block =0.5 9 Blocks =1.001-1.009 Step=0.001
9 Blocks =1.01-1.09 Step=0.01
9 Blocks =1.1-1.9 Step=0.1
24 Blocks =1-24 Step=1
4 Blocks =25-100 Step=25
56 516-354-26 CERA 0 Size
1 Block =0.5 9 Blocks =1.001-1.009 Step=0.001
9 Blocks =1.01-1.09 Step=0.01
9 Blocks =1.1-1.9 Step=0.1
24 Blocks =1-24 Step=1
4 Blocks =25-100 Step=25
56 516-355-26 CERA AS-1 Size
1 Block =0.5 9 Blocks =1.001-1.009 Step=0.001
9 Blocks =1.01-1.09 Step=0.01
9 Blocks =1.1-1.9 Step=0.1
24 Blocks =1-24 Step=1
4 Blocks =25-100 Step=25
56 516-356-26 CERA AS-2 Size
1 Block =0.5 9 Blocks =1.001-1.009 Step=0.001
9 Blocks =1.01-1.09 Step=0.01
9 Blocks =1.1-1.9 Step=0.1
24 Blocks =1-24 Step=1
4 Blocks =25-100 Step=25
47 516-357-26 CERA 0 Size
1 Block =1.005 9 Blocks =1.01-1.09 Step=0.01
9 Blocks =1.1-1.9 Step=0.1
24 Blocks =1-24 Step=1
4 Blocks =25-100 Step=25
47 516-358-26 CERA 0 Size
1 Block =1.005 9 Blocks =1.01-1.09 Step=0.01
9 Blocks =1.1-1.9 Step=0.1
24 Blocks =1-24 Step=1
4 Blocks =25-100 Step=25
47 516-359-26 CERA AS-1 Size
1 Block =1.005 9 Blocks =1.01-1.09 Step=0.01
9 Blocks =1.1-1.9 Step=0.1
24 Blocks =1-24 Step=1
4 Blocks =25-100 Step=25
47 516-360-26 CERA AS-2 Size
1 Block =1.005 9 Blocks =1.01-1.09 Step=0.01
9 Blocks =1.1-1.9 Step=0.1
24 Blocks =1-24 Step=1
4 Blocks =25-100 Step=25
112 516-531-56 Steel K Size
1 Block = 0.0005
9 Blocks =1.001-1.009 Step=0.001
49 Blocks =1.01-1.49 Step=0.01
49 Blocks =0.05-24.5 Step=0.5
4 Blocks =25-100 Step=25
103 516-533-56 Steel K Size
1 Block =1.005
49 Blocks =1.01-1.49 Step=0.01
49 Blocks =0.5-24.5 Step=0.5
4 Blocks =25-100 Step=25
87 516-535-56 Steel K Size
9 Blocks =1.005-1.009 Step=0.001
49 Blocks =1.01-1.49 Step=0.01
19 Blocks =0.5-9.5 Step=0.5
10 Blocks =10-100 Step=10
56 516-536-56 Steel K Size
1 Block =0.5 9 Blocks =1.001-1.009 Step=0.001
9 Blocks =1.01-1.09 Step=0.01
9 Blocks =1.1-1.9 Step=0.1
24 Blocks =1-24 Step=1
4 Blocks =25-100 Step=25
47 516-537-56 Steel K Size
1 Block =1.005 9 Blocks =1.01-1.09 Step=0.01
9 Blocks =1.1-1.9 Step=0.1
24 Blocks =1-24 Step=1
4 Blocks =25-100 Step=25
112 516-541-56 CERA K Size
1 Block = 0.0005
9 Blocks =1.001-1.009 Step=0.001
49 Blocks =1.01-1.49 Step=0.01
49 Blocks =0.05-24.5 Step=0.5
4 Blocks =25-100 Step=25
103 516-542-56 CERA K Size
1 Block =1.005
49 Blocks =1.01-1.49 Step=0.01
49 Blocks =0.5-24.5 Step=0.5
4 Blocks =25-100 Step=25
87 516-543-56 CERA K Size
9 Blocks =1.005-1.009 Step=0.001
49 Blocks =1.01-1.49 Step=0.01
19 Blocks =0.5-9.5 Step=0.5
10 Blocks =10-100 Step=10
56 516-544-56 CERA K Size
1 Block =0.5 9 Blocks =1.001-1.009 Step=0.001
9 Blocks =1.01-1.09 Step=0.01
9 Blocks =1.1-1.9 Step=0.1
24 Blocks =1-24 Step=1
4 Blocks =25-100 Step=25
47 516-545-56 CERA K Size
1 Block =1.005 9 Blocks =1.01-1.09 Step=0.01
9 Blocks =1.1-1.9 Step=0.1
24 Blocks =1-24 Step=1
4 Blocks =25-100 Step=25
112 516-937-26 Steel 0 Size
1 Block = 0.0005
9 Blocks =1.001-1.009 Step=0.001
49 Blocks =1.01-1.49 Step=0.01
49 Blocks =0.05-24.5 Step=0.5
4 Blocks =25-100 Step=25
112 516-938-26 Steel 0 Size
1 Block = 0.0005
9 Blocks =1.001-1.009 Step=0.001
49 Blocks =1.01-1.49 Step=0.01
49 Blocks =0.05-24.5 Step=0.5
4 Blocks =25-100 Step=25
112 516-939-26 Steel AS-1 Size
1 Block = 0.0005
9 Blocks =1.001-1.009 Step=0.001
49 Blocks =1.01-1.49 Step=0.01
49 Blocks =0.05-24.5 Step=0.5
4 Blocks =25-100 Step=25
112 516-940-26 Steel AS-2 Size
1 Block = 0.0005
9 Blocks =1.001-1.009 Step=0.001
49 Blocks =1.01-1.49 Step=0.01
49 Blocks =0.05-24.5 Step=0.5
4 Blocks =25-100 Step=25
103 516-941-26 Steel 0 Size
1 Block =1.005
49 Blocks =1.01-1.49 Step=0.01
49 Blocks =0.5-24.5 Step=0.5
4 Blocks =25-100 Step=25
103 516-942-26 Steel 0 Size
1 Block =1.005
49 Blocks =1.01-1.49 Step=0.01
49 Blocks =0.5-24.5 Step=0.5
4 Blocks =25-100 Step=25
103 516-943-26 Steel AS-1 Size
1 Block =1.005
49 Blocks =1.01-1.49 Step=0.01
49 Blocks =0.5-24.5 Step=0.5
4 Blocks =25-100 Step=25
103 516-944-26 Steel AS-2 Size
1 Block =1.005
49 Blocks =1.01-1.49 Step=0.01
49 Blocks =0.5-24.5 Step=0.5
4 Blocks =25-100 Step=25
87 516-945-26 Steel 0 Size
9 Blocks =1.005-1.009 Step=0.001
49 Blocks =1.01-1.49 Step=0.01
19 Blocks =0.5-9.5 Step=0.5
10 Blocks =10-100 Step=10
87 516-946-26 Steel 0 Size
9 Blocks =1.005-1.009 Step=0.001
49 Blocks =1.01-1.49 Step=0.01
19 Blocks =0.5-9.5 Step=0.5
10 Blocks =10-100 Step=10
87 516-947-26 Steel AS-1 Size
9 Blocks =1.005-1.009 Step=0.001
49 Blocks =1.01-1.49 Step=0.01
19 Blocks =0.5-9.5 Step=0.5
10 Blocks =10-100 Step=10
87 516-948-26 Steel AS-2 Size
9 Blocks =1.005-1.009 Step=0.001
49 Blocks =1.01-1.49 Step=0.01
19 Blocks =0.5-9.5 Step=0.5
10 Blocks =10-100 Step=10
56 516-953-26 Steel 0 Size
1 Block =0.5 9 Blocks =1.001-1.009 Step=0.001
9 Blocks =1.01-1.09 Step=0.01
9 Blocks =1.1-1.9 Step=0.1
24 Blocks =1-24 Step=1
4 Blocks =25-100 Step=25
56 516-954-26 Steel 0 Size
1 Block =0.5 9 Blocks =1.001-1.009 Step=0.001
9 Blocks =1.01-1.09 Step=0.01
9 Blocks =1.1-1.9 Step=0.1
24 Blocks =1-24 Step=1
4 Blocks =25-100 Step=25
56 516-955-26 Steel AS-1 Size
1 Block =0.5 9 Blocks =1.001-1.009 Step=0.001
9 Blocks =1.01-1.09 Step=0.01
9 Blocks =1.1-1.9 Step=0.1
24 Blocks =1-24 Step=1
4 Blocks =25-100 Step=25
56 516-956-26 Steel AS-2 Size
1 Block =0.5 9 Blocks =1.001-1.009 Step=0.001
9 Blocks =1.01-1.09 Step=0.01
9 Blocks =1.1-1.9 Step=0.1
24 Blocks =1-24 Step=1
4 Blocks =25-100 Step=25
47 516-957-26 Steel 0 Size
1 Block =1.005 9 Blocks =1.01-1.09 Step=0.01
9 Blocks =1.1-1.9 Step=0.1
24 Blocks =1-24 Step=1
4 Blocks =25-100 Step=25
47 516-958-26 Steel 0 Size
1 Block =1.005 9 Blocks =1.01-1.09 Step=0.01
9 Blocks =1.1-1.9 Step=0.1
24 Blocks =1-24 Step=1
4 Blocks =25-100 Step=25
47 516-959-26 Steel AS-1 Size
1 Block =1.005 9 Blocks =1.01-1.09 Step=0.01
9 Blocks =1.1-1.9 Step=0.1
24 Blocks =1-24 Step=1
4 Blocks =25-100 Step=25
47 516-960-26 Steel AS-2 Size
1 Block =1.005 9 Blocks =1.01-1.09 Step=0.01
9 Blocks =1.1-1.9 Step=0.1
24 Blocks =1-24 Step=1
4 Blocks =25-100 Step=25
