Ordering Guide of MITUTOYO Dial Indicator Thickness Gage 7360 Range 0-10mm, Grad 0,01mm:
Range:
|
0 – 10 mm
|
Graduation:
|
0,01 mm
|
Accuracy:
|
±0,015 mm
|
Measuring force:
|
≤ 1,4 N
|
Indicator No.:
|
2046SB
|
Max. measuring depth:
|
20 mm
|
Mass:
|
200 g
|
Parallelism:
|
5 µm
|

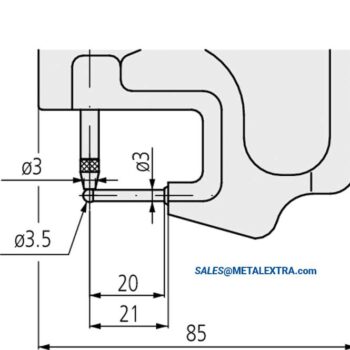

Contact point:
|
Thread M 2.5 x 0.45 mm
|
Inch-Metric:
|
Metric
|
• For one-touch quick measurement of the thickness of small parts,
papers, and felt
• Rust-free ceramic contact point and anvil (except No. 547-401)
Alternative Guide of MITUTOYO Dial Thickness Gage Series-7 Flat Anvil Type METRIC:
Range | Order No | Graduation | Accuracy | Force | Remark |
0-10mm | 7301 | 0.01mm | 15µm | less than 1.4N | Standard, ceramic spindle/anvil |
0-20mm | 7305 | 0.01mm | 20µm | less than 2.0N | Standard, ceramic spindle/anvil |
0-10mm | 7321 | 0.01mm | 15µm | less than 1.4N | Deep throat, ceramic spindle/anvil |
0-20mm | 7323 | 0.01mm | 22µm | less than 2.0N | Deep throat,ceramic spindle/anvil |
Alternative Guide of MITUTOYO Dial Thickness Gage Series-7 Flat Anvil Type INCH ANSI/IMPERIAL:
Range | Order No | Graduation | Accuracy | Force | Remark |
0-.5in | 7300S | .001in | .001in | less than 1.4N | Standard, ceramic spindle/anvil |
0-1in | 7304S | .001in | .002in | less than 2.0N | Standard, ceramic spindle/anvil |
0-1in | 7322S | .001in | .002in | less than 2.0N | Deep throat, ceramic spindle/anvil |
0-.05in | 7326S | .0001in | .0002in | less than 1.4N | Fine dial reading, ceramic spindle/anvil |
Note)
- Changing the contact point requires total adjustment, including the main display unit. Contact METALEXTRA for advice.
- The accuracy specification does not include the quantizing error of ±1 count.
- Left-handed models can be supplied to special order.
