Order Guide of MITUTOYO Toolmaker’s Microscope TM-A505B Digimatic 200x XY Stage:
Optical Tube: |
Monocular Type (Vertical tilt angle: 60 degrees) |
Observation Image: | Errect |
Eyepiece Protractor: | Resolution (graduation) : 1°, Rotation angle: 360°, Resolution (angle): 6′, Adjustable zero point |
Eyepiece: | Standard accessory: 15X (field number: 13), Options: 10X, 20X |
Objective lens: | 2x |
Microscope Head: | Maximum height of workpiece: 4.53″ / 115mm
Focusing Method: Manual (Coarse feed) |
Illumination: | Transmitted illumination: Stepless brightness adjustment, White LED light source, With green filter
Surface illumination: Oblique single-source type, Stepless brightness adjustment, White LED light source |
Cross-travel Stage: | Measuring Range: 2″ x 2″ / 50×50mm
Table Size: 16″ x 6″ / 52×152mm Usable Area of Stage Glass: 3.8″ x 3.8″ / 96×96mm Maximum Stage Glass Loading: 11 lbs. / 5kg |
Linear Measurement: | Two digimatic micrometer heads for X-Y measurement
Resolution: .00005″/1μm Travel Range: 2″/50mm |
Power Supply: | 120VAC Maximum power consumption: 4.2W |
Dimension Guide of MITUTOYO Toolmaker’s Microscope TM-505B Manual 2x objective X-Y stage:
Alternative Guide of MITUTOYO Toolmaker’s Microscope TM-505B/1005B Series:
Model No | TM-505B | TM-A505B | TM-1005B | TM-A1005B |
Order No | 176-818A | 176-820A | 176-819A | 176-821A |
Objective Lens | Standard accessory:2x,Options: 5x, 10x | Standard accessory:2x,Options: 5x, 10x | Standard accessory:2x,Options: 5x, 10x | Standard accessory:2x,Options: 5x, 10x |
Mic Head.Max. Workpiece Height | 4.53in 115mm | 4.53in 115mm | 4.21in 107mm | 4.21in 107mm |
Transmitted illumination | Stepless brightness adjustment, White LED light source, With green filter | Stepless brightness adjustment, White LED light source, With green filter | Stepless brightness adjustment, White LED light source, With green filter | Stepless brightness adjustment, White LED light source, With green filter |
Surface illumination | Oblique single-source type, Stepless brightness adjustment, White LED light source | Oblique single-source type, Stepless brightness adjustment, White LED light source | Oblique single-source type, Stepless brightness adjustment, White LED light source | Oblique single-source type, Stepless brightness adjustment, White LED light source |
Cross travel measuring range | 2 x 2in 50 x 50mm | 2 x 2in 50 x 50mm | 4 x 2in 100 x 50mm | 4 x 2in 100 x 50mm |
Table top size | 16x6in 52x 152mm | 16x6in 52x 152mm | 9.44x6in 240x 152mm | 9.44x6in 240x 152mm |
Usable area of stage glass | 3.8×3.8in 96x96mm | 3.8×3.8in 96x96mm | 6×3.8in 154x96mm | 6×3.8in 154x96mm |
Linear measurement method | Mic Heads Optional | Mic Heads Included | Mic Heads Optional | Mic Heads Included |
Resolution | N/A | .00005″/1µm | N/A | .00005″/1µm |
Micrometer head travel range | N/A | 2″/50mm | N/A | 2″/50mm |

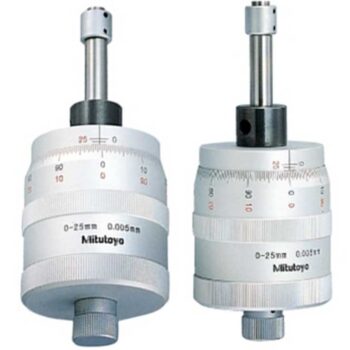

Options for MITUTOYO Toolmaker’s Microscope TM-505B Manual 2x objective X-Y stage:
