Ordering Guide for UVEX LASERVISION Safety Goggle for UV, VIS and NIR spectral range (180-532nm and 1030-1100nm) R17.T1L02.1001 :
| COATING: |
Interference layer (PVD) |
| FILTER CURVATURE: |
Planes filter |
| NORMS: |
EN 207 full protection |
| UPHOLSTERY: |
no padding |
| TYPE OF GLASSES: |
Safety glasses with Rx insert possible |
| CHARACTERISTICS: |
M-protection levels
with glass composite
adjustable temples |
| VERSION: |
R17 |
| FILTER: |
T1L02 |
| FILTER COLOR: |
orange |
| COLOR VIEW: |
Limited |
| FILTER THICKNESS: |
approx 9mm |
| FILTER MATERIAL: |
Coated glass |
| FILTER TECHNOLOGY: |
Absorption filter
reflection filter |
| PROTECTION AREA: |
Near infrared
layer filter
visible
ultraviolet |
| VISUAL BRIGHTNESS: |
Sufficient |
| VLT (APPROX.): |
15% |
- Item number: R17T1L021001
- GTIN: 4050369012264
- Packaging Unit: 1 piece
- Weight including packaging: 0.51 kg
- Weight without packaging: 0.17 kg
Application for UVEX LASERVISION Safety Goggle for UV, VIS and NIR spectral range (180-532nm and 1030-1100nm) R17.T1L02.1001 :

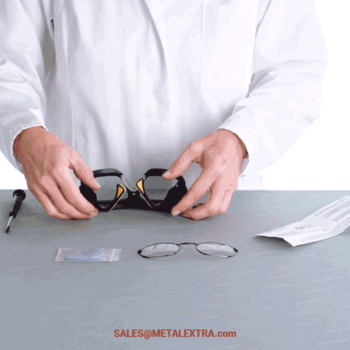

The laservision laser safety glasses R17.T1L02.1001 offer high M protection levels in the UV, VIS and NIR spectral range (180-532nm and 1030-1100nm). The full protective goggles with sheet filters can be combined with an Rx insert. The reinforced glasses with orange filters ensure a good field of vision. The delivery takes place in a metal box, which can also be used for storage, together with a cord to hang the glasses on.
| WAVELENGTH (NM) |
OD |
OPERATING MODE / TESTED PROTECTION LEVEL |
| 180-315 |
(OD10 +) |
D LB10 + IR LB5 + M LB6Y |
| > 315 – <532 |
(OD9 +) |
DI LB7 + R LB7Y + M LB9 |
| 532-535 |
(OD9 +) |
DIR LB8 + M LB9 |
| 1030-1100 |
(OD9 +) |
D LB8 + IRM LB9 |
| 2000-2200 |
(OD2 +) |
DI LB2 + R LB1 |
| 5400-5400 |
(OD4 +) |
D LB3 + I LB4 + R LB2 |
| 9000-11500 |
(OD4 +) |
D LB3 + I LB4 + R LB2 |
