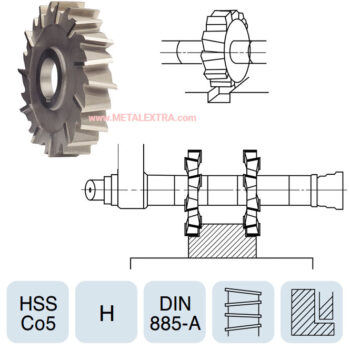

Dimension YG-1 Side & Face Milling Cutter With Staggered Teeth DIN 885-A:
Order Guide YG-1 Side & Face Milling Cutter With Staggered Teeth DIN 885-A (in mm):
EDP No. |
CUTTER DIAMETER D (js14) |
WIDTH OF FACE S (k11) |
INTERNAL DIAMETER d (H7) |
NUMBER OF TEETH Z |
ML10205001 |
50 |
3 |
16 |
14 |
ML10205002 |
50 |
4 |
16 |
14 |
ML10205003 |
50 |
5 |
16 |
14 |
ML10205004 |
50 |
6 |
16 |
14 |
ML10205005 |
50 |
7 |
16 |
14 |
ML10205006 |
50 |
8 |
16 |
14 |
ML10205007 |
50 |
9 |
16 |
14 |
ML10205008 |
50 |
10 |
16 |
14 |
ML10206301 |
63 |
3 |
22 |
16 |
ML10206302 |
63 |
4 |
22 |
16 |
ML10206303 |
63 |
5 |
22 |
16 |
ML10206304 |
63 |
6 |
22 |
16 |
ML10206305 |
63 |
7 |
22 |
16 |
ML10206306 |
63 |
8 |
22 |
16 |
ML10206307 |
63 |
9 |
22 |
16 |
ML10206308 |
63 |
10 |
22 |
16 |
ML10206309 |
63 |
12 |
22 |
16 |
ML10206310 |
63 |
14 |
22 |
16 |
ML10206311 |
63 |
16 |
22 |
16 |
ML10206312 |
63 |
18 |
22 |
16 |
ML10208001 |
80 |
3 |
22 |
18 |
ML10208002 |
80 |
4 |
22 |
18 |
ML10208003 |
80 |
5 |
22 |
18 |
ML10208004 |
80 |
6 |
22 |
18 |
ML10208005 |
80 |
7 |
22 |
18 |
ML10208006 |
80 |
8 |
22 |
18 |
ML10208007 |
80 |
9 |
22 |
18 |
ML10208008 |
80 |
10 |
22 |
18 |
ML10208009 |
80 |
12 |
22 |
18 |
ML10208010 |
80 |
14 |
22 |
18 |
ML10208011 |
80 |
16 |
22 |
18 |
ML10208012 |
80 |
18 |
22 |
18 |
ML10208013 |
80 |
20 |
22 |
18 |
ML10208014 |
80 |
4 |
27 |
18 |
ML10208015 |
80 |
5 |
27 |
18 |
ML10208016 |
80 |
6 |
27 |
18 |
ML10208017 |
80 |
7 |
27 |
18 |
ML10208018 |
80 |
8 |
27 |
18 |
ML10208019 |
80 |
9 |
27 |
18 |
ML10208020 |
80 |
10 |
27 |
18 |
ML10208021 |
80 |
12 |
27 |
18 |
ML10208022 |
80 |
14 |
27 |
18 |
ML10208023 |
80 |
16 |
27 |
18 |
ML10208024 |
80 |
18 |
27 |
18 |
ML10208025 |
80 |
20 |
27 |
18 |
ML10210001 |
100 |
3 |
27 |
20 |
ML10210002 |
100 |
4 |
27 |
20 |
ML10210003 |
100 |
5 |
27 |
20 |
ML10210004 |
100 |
6 |
27 |
20 |
ML10210005 |
100 |
7 |
27 |
20 |
ML10210006 |
100 |
8 |
27 |
20 |
ML10210007 |
100 |
9 |
27 |
20 |
ML10210008 |
100 |
10 |
27 |
20 |
ML10210009 |
100 |
12 |
27 |
20 |
ML10210010 |
100 |
14 |
27 |
20 |
ML10210011 |
100 |
15 |
27 |
20 |
ML10210012 |
100 |
16 |
27 |
20 |
ML10210013 |
100 |
18 |
27 |
20 |
ML10210014 |
100 |
20 |
27 |
20 |
ML10210015 |
100 |
4 |
32 |
20 |
ML10210016 |
100 |
5 |
32 |
20 |
ML10210017 |
100 |
6 |
32 |
20 |
ML10210018 |
100 |
7 |
32 |
20 |
ML10210019 |
100 |
8 |
32 |
20 |
ML10210020 |
100 |
9 |
32 |
20 |
ML10210021 |
100 |
10 |
32 |
20 |
ML10210022 |
100 |
12 |
32 |
20 |
ML10210023 |
100 |
14 |
32 |
20 |
ML10210024 |
100 |
15 |
32 |
20 |
ML10210025 |
100 |
16 |
32 |
20 |
ML10210026 |
100 |
18 |
32 |
20 |
ML10210027 |
100 |
20 |
32 |
20 |
ML10212501 |
125 |
5 |
32 |
22 |
ML10212502 |
125 |
6 |
32 |
22 |
ML10212503 |
125 |
8 |
32 |
22 |
ML10212504 |
125 |
10 |
32 |
22 |
ML10212505 |
125 |
12 |
32 |
22 |
ML10212506 |
125 |
14 |
32 |
22 |
ML10212507 |
125 |
16 |
32 |
22 |
ML10212508 |
125 |
18 |
32 |
22 |
ML10212509 |
125 |
20 |
32 |
22 |
ML10216001 |
160 |
6 |
32 |
26 |
ML10216002 |
160 |
8 |
32 |
26 |
ML10216003 |
160 |
10 |
32 |
26 |
ML10216004 |
160 |
12 |
32 |
26 |
ML10216005 |
160 |
14 |
32 |
26 |
ML10216006 |
160 |
16 |
32 |
26 |
ML10216007 |
160 |
18 |
32 |
26 |
ML10216008 |
160 |
20 |
32 |
26 |
ML10216009 |
160 |
6 |
40 |
26 |
ML10216010 |
160 |
8 |
40 |
26 |
ML10216011 |
160 |
10 |
40 |
26 |
ML10216012 |
160 |
12 |
40 |
26 |
ML10216013 |
160 |
14 |
40 |
26 |
ML10216014 |
160 |
16 |
40 |
26 |
ML10216015 |
160 |
18 |
40 |
26 |
ML10216016 |
160 |
20 |
40 |
26 |
ML10220001 |
200 |
10 |
40 |
30 |
ML10220002 |
200 |
12 |
40 |
30 |
ML10220003 |
200 |
14 |
40 |
30 |
ML10220004 |
200 |
16 |
40 |
30 |
ML10220005 |
200 |
18 |
40 |
30 |
ML10220006 |
200 |
20 |
40 |
30 |
ML10220007 |
200 |
22 |
40 |
30 |
ML10220008 |
200 |
25 |
40 |
30 |
Machining Parameter YG-1 Side & Face Milling Cutter With Staggered Teeth DIN 885-A:
