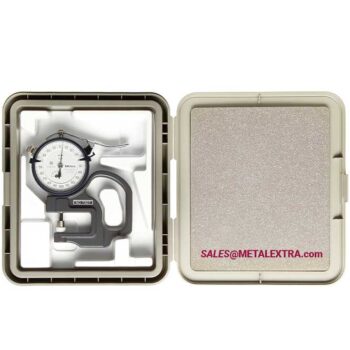

Ordering Guide of MITUTOYO Dial Thickness Gage 7327 Range 0-1mm, Grad 0,001mm:
Range:
|
0 – 1 mm
|
Graduation:
|
0,001 mm
|
Accuracy:
|
±0,005 mm
|
Measuring force:
|
≤ 1,5 N
|
Indicator No.:
|
2109SB-10
|

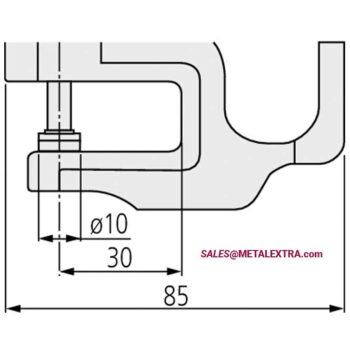

Max. measuring depth:
|
30 mm
|
Mass:
|
225 g
|
Parallelism:
|
5 µm
|
Contact point:
|
Thread M 2.5 x 0.45 mm
|
Inch-Metric:
|
Metric
|
• For one-touch quick measurement of the thickness of small parts,
papers, and felt
• Rust-free ceramic contact point and anvil (except No. 547-401)
Alternative Guide of MITUTOYO Dial Thickness Gage Series-7 Flat Anvil Type METRIC:
0-10mm |
7301 |
0.01mm |
15µm |
less than 1.4N |
Standard, ceramic spindle/anvil |
0-20mm |
7305 |
0.01mm |
20µm |
less than 2.0N |
Standard, ceramic spindle/anvil |
0-10mm |
7321 |
0.01mm |
15µm |
less than 1.4N |
Deep throat, ceramic spindle/anvil |
0-20mm |
7323 |
0.01mm |
22µm |
less than 2.0N |
Deep throat,ceramic spindle/anvil |
Alternative Guide of MITUTOYO Dial Thickness Gage Series-7 Flat Anvil Type INCH ANSI/IMPERIAL:
0-.5in |
7300S |
.001in |
.001in |
less than 1.4N |
Standard, ceramic spindle/anvil |
0-1in |
7304S |
.001in |
.002in |
less than 2.0N |
Standard, ceramic spindle/anvil |
0-1in |
7322S |
.001in |
.002in |
less than 2.0N |
Deep throat, ceramic spindle/anvil |
0-.05in |
7326S |
.0001in |
.0002in |
less than 1.4N |
Fine dial reading, ceramic spindle/anvil |
Note)
- Changing the contact point requires total adjustment, including the main display unit. Contact METALEXTRA for advice.
- The accuracy specification does not include the quantizing error of ±1 count.
- Left-handed models can be supplied to special order.
