Order OTSUKA Square Magnifier WIDE Series:
Lens Type |
OSL/WIDE 1 |
OSL/WIDE 2 |
OSL/WIDE 3 |
OSL/WIDE 4 |
Magnification |
2x |
2x |
2x |
2x |
Allowable lens dimension (mm) |
180×220 |
180×220 |
180×220 |
180×220 |
Lens Material |
Optical glass |
Optical glass |
Optical glass |
Optical glass |
Working distance (mm) |
2x/160 |
2x/160 |
2x/160 |
2x/160 |
Lens Type |
Fixed |
Fixed |
Fixed |
Fixed |
Multi-coating Setting |
Not available |
Not available |
Not available |
Not available |
Lighting |
|
|
|
|
Light source |
8W straight fluorescent tubes (FL8N) × 4 pc. epi-illumination/2 pc., transillumination/2 pc. |
8W-straight fluorescent tubes (FL8N) x 2 pc. |
8W-straight fluorescent tubes (FL8N) x 2 pc. |
8W-straight fluorescent tubes (FL8N) x 2 pc. |
Input voltage |
100V: 50/60 Hz: Plug Type A |
100V: 50/60 Hz: Plug Type A |
100V: 50/60 Hz: Plug Type A |
100V: 50/60 Hz: Plug Type A |
Power consumption |
44 W |
22 W |
22 W |
22 W |
Dimming Function |
Not available |
Not available |
Not available |
Not available |
Body |
|
|
|
|
Product weight (Kg) |
13.7 Kg |
13.7 Kg |
11.5 Kg |
12.5 Kg |
Overall height (mm) |
375 |
375 |
375 |
800 |
Head Dimensions (mm) |
314X284X55H |
314X284X55H |
314X284x55H |
180X237 |
Brace / Bar (diameter/mm) |
ɸ16/ɸ16 |
ɸ16/ɸ16 |
ɸ16/ɸ16 |
0~70 |
Table dimensions (mm) |
400X420X65H |
400X420X65H |
0~70 |
150X150X80H |
Transillumination Dimensions (mm) |
200X320 |
|
150X150X80H |
|

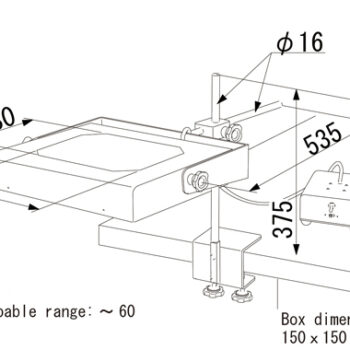

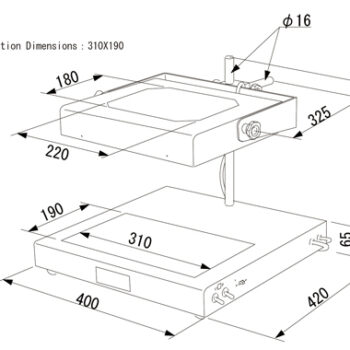

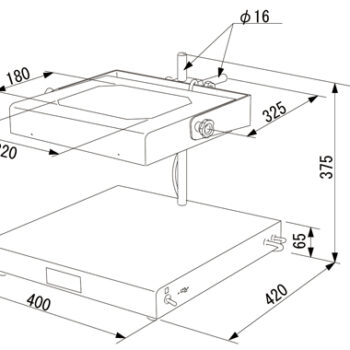

Lensa OTSUKA Square Magnifier WIDE Series Type Stand:

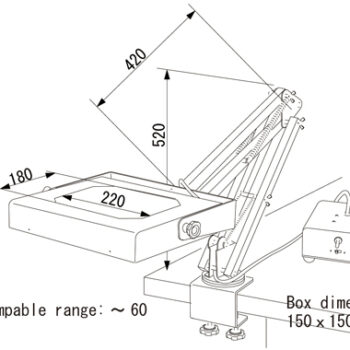

Lensa OTSUKA Square Magnifier WIDE Series Type Articulated Stand:
