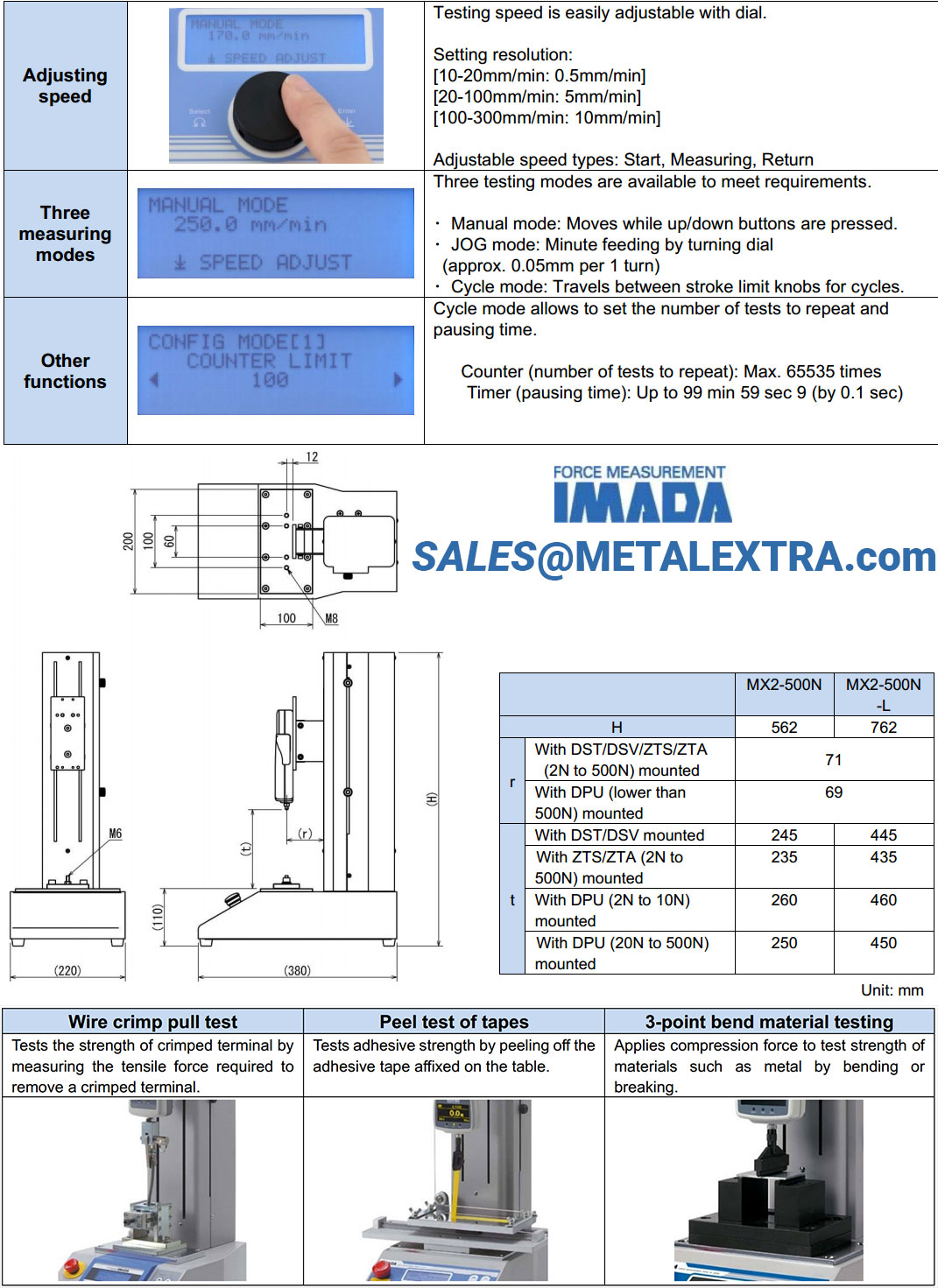

Using Guide & Dimension of IMADA Vertical Motorized Test Stand MX2-500N :
Order Guide IMADA Vertical Motorized Test Stand MX2 series 500N to 5000N:
Model | MX2-500N | MX2-1000N | MX2-2500N | MX2-5000N | ||
Image | ![]() |
![]() |
![]() |
![]() |
||
Capacity | 500N | 1000N | 2500N | 5000N | ||
Speed | Digital 10 to 300mm/min [10 – 20mm/min: by 0.5mm/min] [20 – 100mm/min: by 5mm/min] [100 – 300mm/min: by 10mm/min] |
Digital 0.5 to 300mm/min [0.5 – 20mm/min: by 0.5mm/min] [20 – 100mm/min: by 5mm/min] [100 – 300mm/min: by 10mm/min] |
||||
Max. Sample Height*1 |
Approx. 235mm | Approx. 300mm | Approx. 320mm | Approx. 380mm | ||
Rigidity | [Standard models] less than 0.5mm, | |||||
[Long stroke (optional)] less than 1.0mm | [extended column (optional)] less than 1.0mm | |||||
Stroke Limit | Controllable with upper and lower knob | |||||
Measuring Modes |
Manual / Jog / Cycle mode | |||||
Functions | Counter (number of tests to repeat): Max. 65535 times Timer (pausing time): Up to 99 min 59 sec 9 (by 0.1 sec) |
|||||
Control | Emergency stop, force control (*2), overload prevention (*2, *3) | |||||
Operating temperature humidity |
0 to +40 degree Celsius 35 to 70% (avoid condensation) |
|||||
Voltage | AC100 to 240V, 50/60Hz (Select from 100, 120 and 230V. Accessories are provided accordingly.) | |||||
Power Consumption |
50W | 150W | ||||
Dimensions | See [Dimensions] | |||||
Weight | Approx. 18kg | Approx. 19kg | Approx. 26kg | Approx. 51kg | ||
Accessories | Operation manual, power cable, spare fuse, tools | Operation manual, power cable, spare fuse, tools, carrying handle, yellow cap |
||||
GF-1 (Grip mounting adaptor) |
GF-2 (Grip mounting adaptor), mounting plate for high capacity force gauge |
GF-2 (Grip mounting adaptor), mounting plate for standard force gauge |
||||
Available Options *4*5*6 |
-L: Extended stroke by 200mm -2L: Extended stroke by 400mm (*7) -CN: External signal input -S: Length scale -FA: Inbuilt linear scale -V45: Speed 1.5 to 45mm/min -V90: Speed 3 to 90mm/min -V450: Speed 15 to 450mm/min -V600: Speed 20 to 600mm/min -V900: Speed 30 to 900mm/min |
-L: Extended stroke by 300mm -CN: External signal input -S: Length scale -FA: Inbuilt linear scale -V75: Speed 2.5 to 75mm/min -V150: Speed 5 to 150mm/min -V750: Speed 25 to 750mm/min -V1000: Speed 35 to 1000mm/min |
-L: Extended stroke by 300mm -CN: External signal input -S: Length scale -FA: Inbuilt linear scale -V75: Speed 2.5 to 75mm/min -V150: Speed 5 to 150mm/min |
-EXT: Extended column by 200mm (*8) -CN: External signal input -S: Length scale -FA: Inbuilt linear scale |
||
Mountable Force Gauge *9 |
Mechanical Force Gauge: FB, PS, PSM series Digital Force Gauge: DST, DSV, ZTS, ZTA series (up to 1000N) Load cell: DPU series (up to 500N *10) |
|||||
Digital Force Gauge: ZTS, ZTA series (Over 2500N) Mechanical Force Gauge: PSH series |
NOTES:
*1 Max. sample height refers to the distance between the table and the tip of force gauge measuring shaft when the head is at the top.
(MX2-500N/MX2-1000N: up to 1000N model of ZTS/ZTA series, MX2-2500N/MX2-5000N: With over 2500N model of ZTS/ZTA series
is mounted.)
*2 ZTS/ZTA series force gauge and optional cable CB-518 are required.
*3 It does not guarantee complete protection against overloading.
*4 Add the option code after the model name to complete the model with options.
e.g. When adding long stroke option to MX2-500N … Model: MX2-500N-L
*5 Capacity is reduced as below by some speed change options.
MX2-500N: -V600 capacity 250N, –V900 capacity 150N MX2-1000N:-V750 capacity 500N, –V1000 capacity 250N
*6 Amplifier such as ZTA and FA Plus2 (sold separately) or software are required to record measuring value of linear scale.
*7 Additional charge for wooden packing (Japan domestic shipping) or LVL wooden packing (oversea shipping) are required for shipping.
*8 The stroke does not extend. It extends the column of test stand and max. sample height is approx. 580mm.
*9 Ensure to use within the capacity of force gauge and test stand regardless of the mountable models.
*10 Mounting block (sold separately) is required to mount over 1000N range of DPU to MX2-1000N/MX2-2500N/MX2-5000N.
Application Guide IMADA Vertical Motorized Test Stand MX2 series 500N to 5000N:
