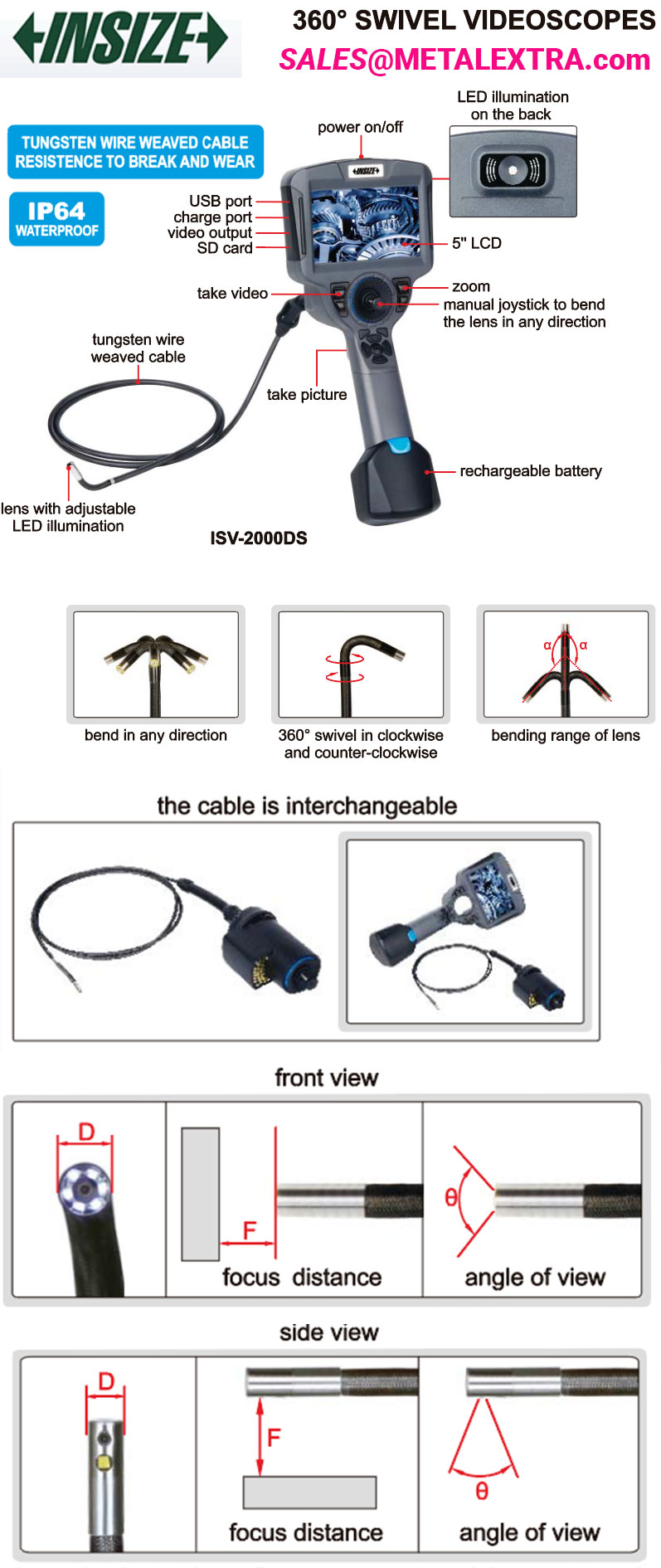

Dimension Guide INSIZE 360° Swivel Videoscope 0,44Mpx IP64:
Ordering Guide INSIZE 360° Swivel Videoscope 0,44Mpx IP64:
Product Code | ISV-2002DS | ISV-2000DS | ISV-2001DS | ISV-3002DS | ISV-3000DS | ISV-3001DS | ISV-4000DS | |
Optical Lens | direction | front view | side view | |
diameter (D) | 6.5mm | 4.5mm | 6.5mm | |
focus distance (F) | 15mm~°° | 8~80mm | 5~25mm | |
bending range (a) | ±160° | ±160° | ±120° | ±120° | ±120° | ±120° | ±160° | |
angle of view (6) | 90° | 80° | >90° | |
illumination | 6 pcs LED | 6 pcs LED | 1 pc LED | |
pixel | 0.44M | 0.4M | 0.3M | |
resolution | |800×480 | 640×480 | ||
dust/waterproof | IP64 | |||
bend control | manual joystick | |||
Cable | length | 1m | 1.5m | 3m | 1m | 1.5m | 3m | 1.5m |
type | tungsten wire weaved cable | |||
Main Unit | function | take picture, take video | ||
file format | picture: JPG, video: AVI | |||
image process | brightness, image quality zoom (1X, 2X, 3X) | |||
memory | 8G SD card | |||
output | TV, USB | |||
power supply | rechargeable battery (for 4 hours working) AC/DC adapter (for continuous working) | |||
Weigh | 600g | 650g | 800g | 550g | 600g | 700g | 650g |
STANDARD DELIEVERY | |
Main unit | 1 pc |
Cable with lens | 1 pc |
8G SD card | 1 pc |
AC/DC adapter | 1 pc |
Video output cable | 1 pc |
USB cable | 1 pc |
