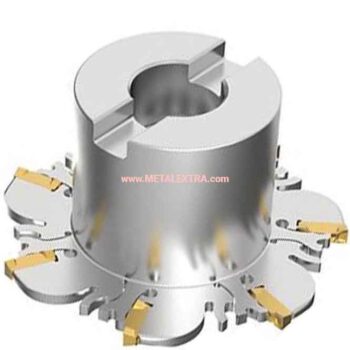

Ordering Guide KENNAMETAL Slotting Mill KNS® Shell Mount ⌀4 Inch – ⌀5 Inch:
Product # | 5614914 |
ISO Catalog Number | KNSU050R07X51S125 |
ANSI Catalog Number | KNSU050R07X51S125 |
Insert Size [SSC] | 51 |

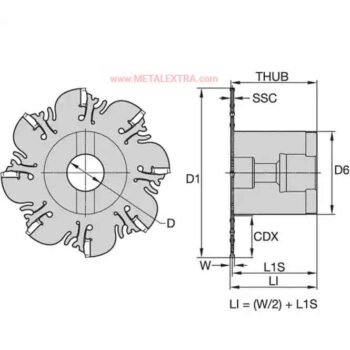

[D1]Effective Cutting Dia In | 5 |
[CDX]Radial MaxDepth of Cut In | 1.094 |
[D]Adapter/Shank/Bore Dia Inch | 1.25 |
[D6] Hub Diameter Inch | 2.750 |
[L1S] Secondary Gage Length In | 2 |
[THUB]Hub Thickness Inch | 2.100 |
Number of Inserts | 7 |
Weight Pounds | 3.66 |
Catalog Gage Insert 1 | XCP51_____ |
Max RPM | 640 |
Alternatives of KENNAMETAL Slotting Mill KNS® Shell Mount ⌀4 Inch – ⌀5 Inch:
Product # | ISO Catalog Number | Insert Size [SSC] | [D1]Effective Cutting Dia In | [CDX]Radial MaxDepth of Cut In | [D]Adapter/Shank/Bore Dia Inch | [D6] Hub Diameter Inch | [L1S] Secondary Gage Length In | [THUB]Hub Thickness Inch | Number of Inserts | Weight Pounds | Catalog Gage Insert 1 | Max RPM |
5614909 | KNSU040R08X16S100 | 16 | 4 | 0.875 | 1 | 2.188 | 1.75 | 1.781 | 8 | 1.82 | XCP16_____ | 800 |
5614910 | KNSU040R07X21S100 | 21 | 4 | 0.875 | 1 | 2.188 | 1.75 | 1.791 | 7 | 1.87 | XCP21_____ | 800 |
5614911 | KNSU050R08X27S125 | 27 | 5 | 1.094 | 1.25 | 2.75 | 2 | 2.053 | 8 | 3.45 | XCP27_____ | 640 |
5614912 | KNSU050R07X34S125 | 34 | 5 | 1.094 | 1.25 | 2.75 | 2 | 2.067 | 7 | 3.55 | XCP34_____ | 640 |
5614913 | KNSU050R07X42S125 | 42 | 5 | 1.094 | 1.25 | 2.75 | 2 | 2.083 | 7 | 3.67 | XCP42_____ | 640 |
5614914 | KNSU050R07X51S125 | 51 | 5 | 1.094 | 1.25 | 2.75 | 2 | 2.1 | 7 | 3.66 | XCP51_____ | 640 |
