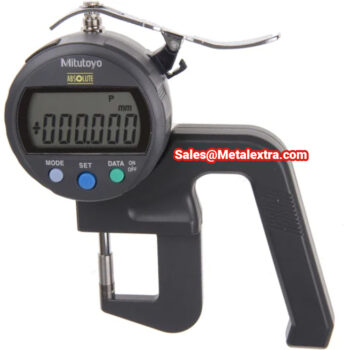

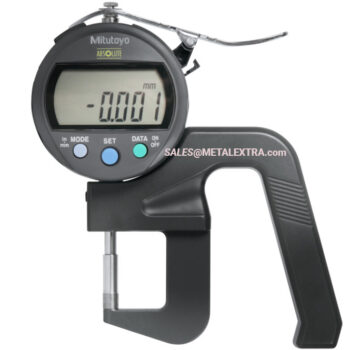

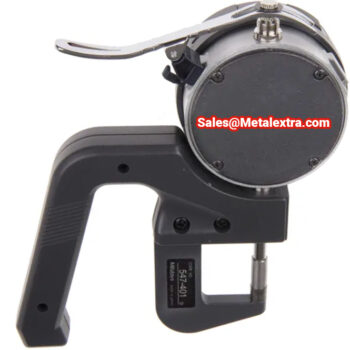

Dimension of MITUTOYO ABS Digital Thickness Gauge (547-401) 0-12mm, 0,001mm:
• For one-touch quick measurement of the thickness of small parts,
papers, and felt
• Rust-free ceramic contact point and anvil (except No. 547-401)
Ordering Guide of MITUTOYO ABS Digital Thickness Gauge (547-401) 0-12mm, 0,001mm:
Range:
|
0 – 12 mm
|
Digital step:
|
0,01 mm/0,001 mm
|
Indicator No.:
|
543-390BS (ID-C)
|
Max. measuring depth:
|
21 mm
|
Mass:
|
290 g
|
Measuring force:
|
≤ 3,5 N
|
Scale:
|
Capacitance type ABSOLUTE linear encoder
|
Parallelism:
|
3
|
Max. response speed:
|
Unlimited
|
Contact point:
|
M 2,5 x 0,45 mm (ISO/JIS type) carbide tip |
Alarm:
|
Low voltage, counting value composition error, overflow error, tolerance limit setting error
|
Power supply:
|
1 battery SR-44
|
Battery life:
|
approx. 7000 hours
|
ZERO/ABS:
|
Yes
|
GO/±NG judgement:
|
Yes
|
Digimatic data output:
|
Yes
|
ON/OFF:
|
Yes
|
DATA/HOLD:
|
Yes
|
Lock function:
|
Yes
|
PRESET:
|
Yes
|
Calculation function:
|
Yes
|
Counting direction switchable:
|
Yes
|
Accuracy:
|
±3 µm
(excluding quantizing error) |
Inch-Metric:
|
Metric
|
Alternative Guide of MITUTOYO ABS Digital Thickness Gauge METRIC ISO & JIS Type:
Order No. | Resolution | Measuring range | Throat depth | Contact point and anvil | Parallelism of contact point and anvil | Accuracy | Measuring force |
547-301 | 0.01mm | 0~10mm | 30mm | 010mm flat | 10gm or less | ±20gm | 1.5N or less |
547-321 | 0.01mm | 0~10mm | 120mm | 010mm flat | 10gm or less | ±20gm | 1.5N or less |
547-401 | 0.001mm | 0~12mm | 21mm | 06.3mm flat (carbide tipped) | 3gm or less | ± 3gm | 3.5N or less |
Note)
- Changing the contact point requires total adjustment, including the main display unit. Contact METALEXTRA for advice.
- The accuracy specification does not include the quantizing error of ±1 count.
- Left-handed models can be supplied to special order.
Alternative Guide of MITUTOYO ABS Digital Thickness Gauge INCH ANSI/IMPERIAL:
Range | Order No | Resolution | Accuracy | Measuring Force | Indicator |
0-.4in 0-10mm |
547-300S | .0005in 0.01mm | .001in | less than 1.5NN | Digimatic IDC |
0-.4in 0-10mm |
547-320S | .0005in 0.01mm | .001in | less than 1.5NN | Digimatic IDC |
0-.47in 0-12mm |
547-400S | .00005in 0.001mm | .00015in | less than 3.5NN | Digimatic IDC |
0-.47in 0-12mm |
547-500S | .0005in 0.01mm | .001in | less than 1.5NN | Digimatic IDS |
0-.47in 0-12mm |
547-520S | .0005in 0.01mm | .001in | less than 1.5NN | Digimatic IDS |
0-.47in 0-12mm |
547-526S | .0001in 0.001mm | .0002in | less than 1.5NN | Digimatic IDS |
