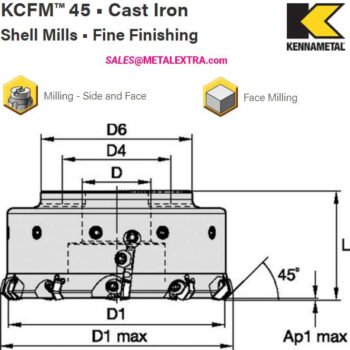

Dimension Guide KENNAMETAL Shell Mills KCFM™ 45 Cast Iron Fine Finishing ⌀80mm – ⌀120mm:
Ordering Guide KENNAMETAL Shell Mills KCFM™ 45 Cast Iron Fine Finishing ⌀80mm – ⌀120mm:
Product # | 6224419 |
ISO Catalog Number | KCFM250R24HD07W6AS |
ANSI Catalog Number | KCFM250R24HD07W6AS |
[D1]Effective Cutting Dia mm | 250 |
[D1MAX]Maximum Cutting Dia mm | 259,5 |
[D]Adapter/Shank/Bore Dia mm | 60,0 |
[D4]Bolt Circle 1 Metric | 101,6 |
[D6] Hub Diameter Metric | 130 |
[L] Overall Length Metric | 63 |
[AP1MAX]1st Max Cut Depth mm | 1,100 |
Number of Inserts | 6 |
Number of Adjustable Inserts | 6 |
Weight Kilograms | 10.04 |
Max RPM | 5100 |
Alternative Guide of KENNAMETAL Shell Mills KCFM™ 45 Cast Iron Fine Finishing ⌀80mm – ⌀120mm:
Product # | ISO Catalog Number | [D1]Effective Cutting Dia mm | [D1MAX]Maximum Cutting Dia mm | [D]Adapter/Shank/Bore Dia mm | [D4]Bolt Circle 1 Metric | [D6] Hub Diameter Metric | [L] Overall Length Metric | [AP1MAX]1st Max Cut Depth mm | Number of Inserts | Number of Adjustable Inserts | Weight Kilograms | Max RPM |
6224414 | KCFM080R08HD07W2AS | 80 | 89,53 | 27,0 | 81,40 | 50 | 1090 | 2 | 2 | 1.71 | 9600 | |
6224415 | KCFM100R08HD07W2AS | 100 | 109,5 | 32,0 | 101,4 | 50 | 1090 | 2 | 2 | 2.45 | 8400 | |
6224416 | KCFM125R10HD07W2AS | 125 | 134,5 | 40,0 | 89 | 63 | 1090 | 2 | 2 | 4.32 | 7400 | |
6224417 | KCFM160R12HD07W4AS | 160 | 169,5 | 40,0 | 66,70 | 90 | 63 | 1100 | 4 | 4 | 5.86 | 6500 |
6224418 | KCFM200R16HD07W4AS | 200 | 209,5 | 60,0 | 101,6 | 130 | 63 | 1090 | 4 | 4 | 8.8 | 5700 |
6224419 | KCFM250R24HD07W6AS | 250 | 259,5 | 60,0 | 101,6 | 130 | 63 | 1100 | 6 | 6 | 10.04 | 5100 |

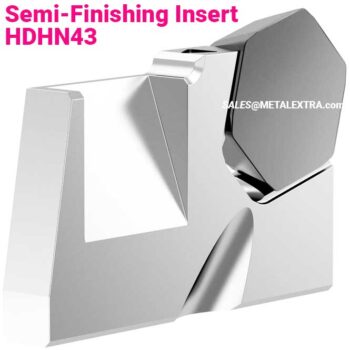

Insert Guide of KENNAMETAL Shell Mills KCFM™ 45 Cast Iron Fine Finishing ⌀80mm – ⌀120mm:
– | Fine Finishing | Semi-Finishing | ||
Material Group | Option 1: CBN | Option 2: Coated Carbide | Option 1: Advanced Material | Option 2: Coated Carbide |
K1K2 | .S..R KBK50 | .E..R KC514M | .S..R KY3500/KBK50 | .E..R KC514M |
K3 | – | .E..R KC514M | – | .E..R KC514M |
